Description

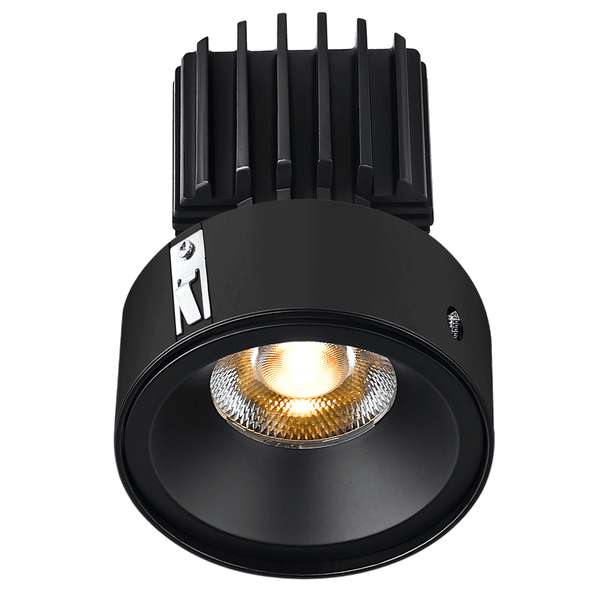

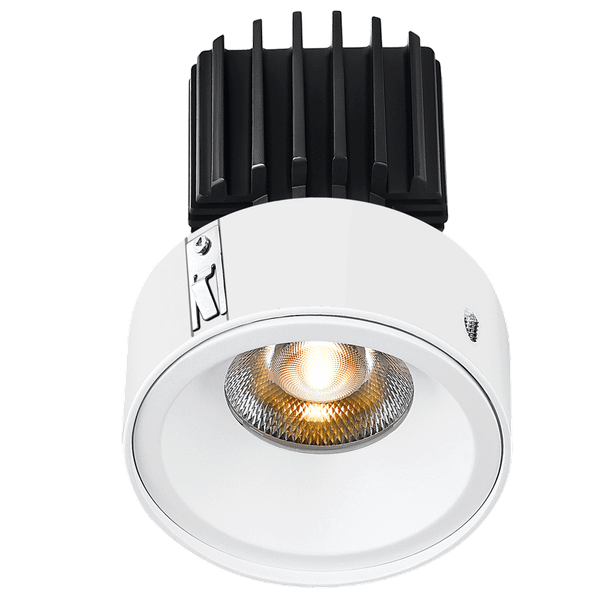

The Lotus Tangra L3F-RRF series is a premium 3" fixed round recessed invisible flangeless fixture designed for refined architectural spaces. Built with a solid cast aluminum body and advanced optics, it delivers high visual comfort and excellent color quality for millwork and wood ceiling applications.

Key Features and Benefits

Modular Tangra platform supports broad customization of trim, optics, beam spread, and LED package.
Ultra-high color rendering options up to CRI98 for vibrant, accurate color appearance.
Smooth dimming performance with Triac or 0-10V driver compatibility, including low-end dimming capability.
Certified for demanding installs with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 ratings.
Backed by Lotus long-term coverage: lifetime while manufactured plus 5-year warranty support.

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W selectable
Voltage: 120V (Triac driver) or 120-347V (0-10V driver)
Beam Angle: 20°|24°|36°|50°|60°
Color Temperature: 3000K (this configuration)
CRI: 95
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Fixture Input: 20-40V DC, max 350mA constant current
Max Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
Rated Life (L70): 50000 hours
Cutout: 3 1/4"; required driver space above ceiling: 4"

Common Uses

Ideal for upscale residential and commercial interiors, including millwork details, wood ceilings, hospitality spaces, retail displays, and other architectural environments where low glare and precise beam control are important.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Round Recessed Invisible Flangeless Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Driver Type:	Fixed Output
Efficacy (lm/W):	107
Finish / Color:	White\|Black
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	113°F
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
