Description

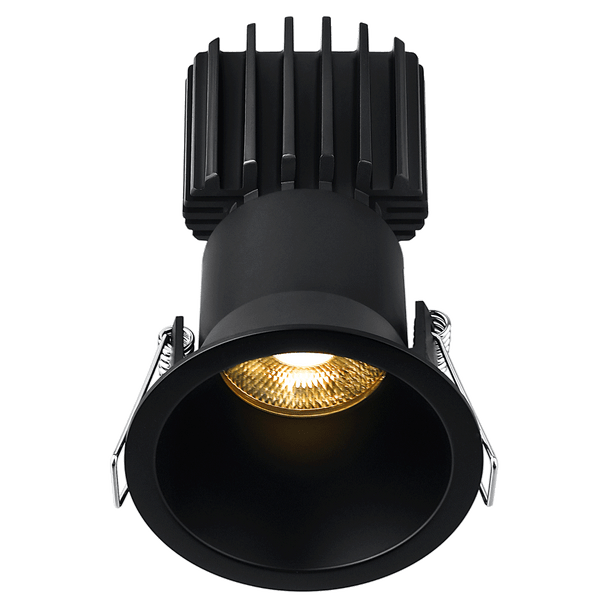

The Lotus Tangra L3F-RDT is a premium 3" fixed round deep regressed thin-trim recessed fixture designed for high-end architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers excellent visual comfort and color quality for residential and commercial spaces. Its modular platform and separate driver options make it a versatile choice across many project requirements.

Key Features and Benefits

Deep regressed optic design helps reduce glare while maintaining a clean, near-trimless ceiling appearance.
Selectable 11W/15W operation with output up to 1600 lumens supports both efficiency and performance targets.
Multiple beam distributions (20°, 24°, 36°, 50°) and optical choices enable precise light control.
High color quality options up to CRI98, including 5CCT and Dim-to-Warm configurations for flexible ambiance.
Certified cETLus and FCC compliant, with Type IC, airtight, open plenum, and wet location IP54 suitability.
Backed by Lotus line-lifetime coverage plus 5 years for long-term project confidence.

Specifications

Lumen Output: up to 1600
Wattage: 11W|15W
Voltage: 120V|120-347V (driver dependent)
Color Temperature: 2700K|3000K|3500K|4000K|5000K
CRI: 95
Dimming: Triac or 0-10V (driver dependent), minimum dim level 3% reverse phase / 4% forward phase cut
Beam Angle: 20°|24°|36°|50°
Input to Fixture: 20-40V DC, max 350mA constant current
Max Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
Rated Life (L70): 50000 hours
Cutout: 2 3/4"; Driver clearance above ceiling: 4"

Common Uses

Ideal for residential and commercial ambient lighting, including living areas, corridors, hospitality spaces, retail environments, and other interiors where low glare, high CRI, and refined recessed aesthetics are important.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Round Deep Regressed Thin Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Efficacy (lm/W):	145
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	+113°F (+45°C)
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable\|Color Temperature Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
