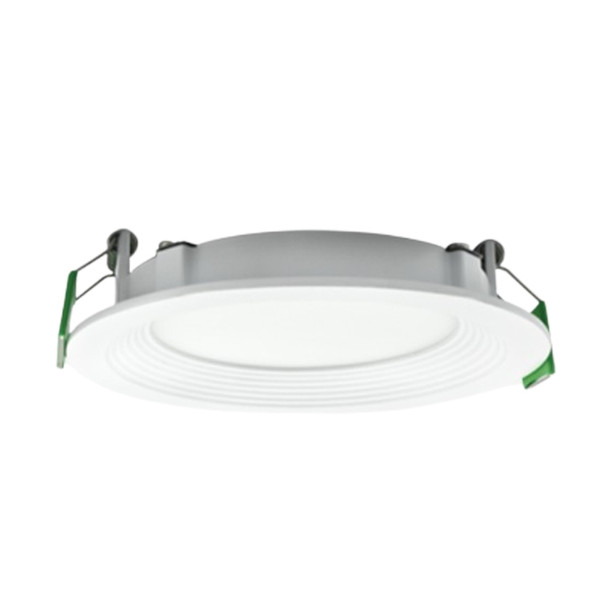

Portor PT-DLSB-R-3 Series Slim Baffle Recessed Downlight, 4", 9W, 5CCT, Generation 3

By Portor Industry
Portor PT-DLSB-R-3 Series Slim Baffle Recessed Downlight, 4", 9W, 5CCT, Generation 3

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor PT-DLSB-R-3 Series Slim Baffle Recessed Downlight, 4", 9W, 5CCT, Generation 3

$15.30
  • SKU: PI-PT-DLSB-R-4I-9W-5CCT-3
  • MPN: PT-DLSB-R-4I-9W-5CCT-3

Quick Overview

4" slim baffle recessed downlight with 5CCT selectable output (2700K-5000K), 9W power, up to 783 lumens, 90 CRI, TRIAC dimming, IC and wet location rating for tight residential and light commercial ceiling spaces.

ETL Listed
Energy Star
WET RATED
IC RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left: 3415
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-DLSB-R-3 Series slim baffle recessed downlight is a space-saving, next-generation fixture designed for shallow ceiling installations. This 4" model combines selectable white color temperatures with smooth dimming performance, making it a versatile choice across residential and multi-unit projects.

Key Features and Benefits

  • 5CCT field-selectable tuning (2700K/3000K/3500K/4000K/5000K) for flexible ambiance and task lighting
  • Slim, edge-lit baffle design helps deliver uniform illumination with reduced glare and no dark spots
  • TRIAC dimming compatibility supports smooth light control from full output down to low levels
  • Certified for confidence: ETL Listed, FCC, RoHS, CE, and Energy Star
  • Backed by a 5-year limited warranty for long-term reliability
  • IC-rated and wet-location rated construction expands installation options, including insulated ceilings and covered outdoor areas

Specifications

  • Lumen Output: 747|756|774|783|774
  • Wattage: 9W
  • Voltage: 120V
  • CRI: 90
  • Beam Angle: 120°
  • Frequency: 60Hz
  • Power Factor: >0.9
  • THD: ≤20%
  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Efficacy: 83|84|86|87|86 lm/W

Common Uses

Ideal for soffits, drop ceilings, closets, attics, hallways, bathrooms, kitchens, basements, entryways, covered porches, garages, stairwells, corridors, condos, apartments, and other compact spaces with limited plenum depth.

RESOURCES AND DOWNLOADS

Portor PT-DLSB-R-3 Series Slim Baffle Recessed Downlight Spec Sheet
