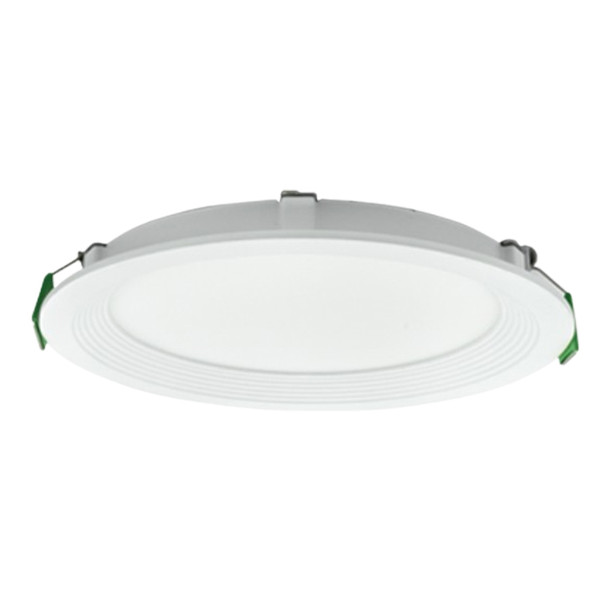

Portor PT-DLSB-R-3 Series Slim Baffle Recessed Downlight, 6", 12W, 5CCT, Generation 3

By Portor Industry

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor PT-DLSB-R-3 Series Slim Baffle Recessed Downlight, 6", 12W, 5CCT, Generation 3

$18.75
  • SKU: PI-PT-DLSB-R-6I-12W-5CCT-3
  • MPN: PT-DLSB-R-6I-12W-5CCT-3

Quick Overview

6" slim baffle recessed downlight with 12W output, 5 selectable CCTs (2700K-5000K), 0-10% TRIAC dimming, 120V input, IC and wet-location ratings for residential and light commercial spaces.

ETL Listed
Energy Star
WET RATED
IC RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left: 820
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-DLSB-R-3 Series slim baffle recessed downlight is a low-profile 6" fixture designed for tight ceiling spaces with only 2" clearance required. As a third-generation model in Portor’s popular slim downlight lineup, it combines flexible color selection, smooth dimming, and dependable performance for modern retrofit and new-construction projects.

Key Features and Benefits

  • 5-CCT field selectability lets you tune light color from warm to daylight tones for different room needs
  • Slim, edge-lit baffle design delivers uniform illumination with reduced glare and no dark spots
  • IC-rated and wet-location rated construction supports use in insulated ceilings and moisture-prone areas
  • TRIAC dimming capability provides smooth light control from 100% down to 10%
  • Certified for quality and compliance: ETL Listed, FCC, RoHS, CE, and Energy Star
  • Backed by a 5-year limited warranty for long-term confidence

Specifications

  • Lumen Output: 996|1008|1032|1044
  • Wattage: 12W
  • Voltage: 120V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 90
  • Beam Angle: 120°
  • Power Factor: 0.9
  • THD: 20
  • Frequency: 60Hz
  • Efficacy: 83|84|86|87 lm/W
  • Max Ambient Temperature: 122°F (50°C)

Common Uses

Ideal for soffits, drop ceilings, closets, hallways, bathrooms, kitchens, basements, entryways, covered porches, garages, stairwells, corridors, multifamily residences, and other compact spaces needing clean recessed lighting.
