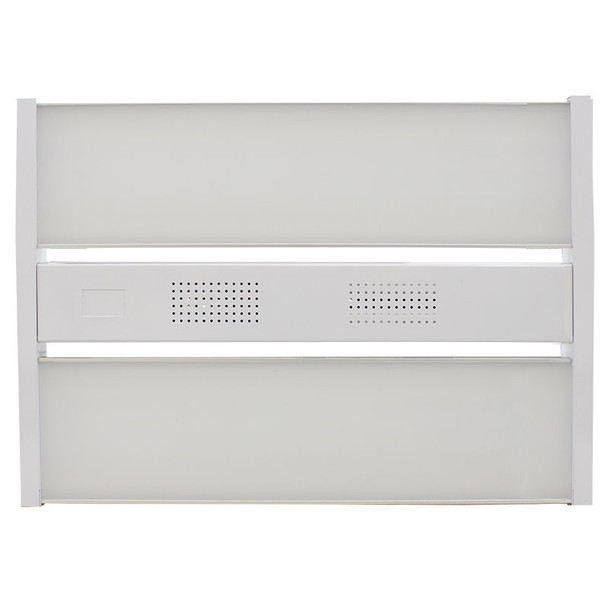

G4 Linear Highbay 120LM/W, Tunable 50W/80W/100W, 4000K 120-277V, Frosted Pc Lens

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

G4 Linear Highbay 120LM/W, Tunable 50W/80W/100W, 4000K 120-277V, Frosted Pc Lens

$119.85 - $127.00
MSRP: $135.32 - $143.39
You save $ 15.47 (11%)
  • SKU: WM-LLHB4-100W-MP
  • MPN: LLHB4-100W-MP

Quick Overview

G4 Linear Highbay 120LM/W, Tunable 50W/80W/100W, 4000K 120-277V, Frosted Pc Lens (wattage: 50W/80W/100W; lumens: 13600; efficacy: 125LM/W; CCT: 4000K; 5000K; voltage: 120-277V)

UL Listed
DLC Premium
WARRANTY 5 YEARS
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Enhance your lighting with the 4th Generation Linear High Bay, delivering exceptional performance and unbeatable energy efficiency. Available in multiple wattages (50W, 80W, and 100W) and color temperatures (4000K or 5000K), this fixture provides up to 12,000 lumens of illumination and is designed for long-lasting use with a rated life of up to 50,000 hours. Suitable for both manufacturing warehousing and large indoor spaces, this versatile high bay can be surface mounted, making it ideal for mounting heights ranging from 10ft to 40ft.

FEATURES

  • High-quality LED chips ensure excellent efficiency, heat dissipation, stability, and lumen maintenance.
  • Durable polycarbonate lens with high flame retardant properties.
  • Impressive 50,000 hours rated life.
  • Includes a 5-Year Limited Warranty.
  • Multi-power options with a switch on the driver for easy adjustments.

ELECTRICAL

  • Voltage: 120~277VAC / 50~60 Hz.
  • Wattage options: 50W, 80W, 100W.
  • High power factor >0.95 for superior performance.
  • Efficacy of 120 LPW for optimal energy savings.

MECHANICAL

  • Built-in surge protector for added safety.
  • Robust steel housing (24 gauge) ensures longevity.
  • V-hooks included for easy installation.
  • Operates effectively within temperature ranges of -4°F to 131°F.
  • Designed for damp locations.

LIGHTING

  • Switch on the driver allows multi-power adjustments.
  • Dimming capabilities: 0~10V dimmable.
  • Polycarbonate lens for clear and uniform light distribution.
  • Delivers a total of 12,000 lumens.
  • Available in color temperatures of 4000K and 5000K.
  • Color Rendering Index (CRI) > 80 for excellent color accuracy.
  • Wide beam angle coverage.
  • Utilizes Edison 2835 SMD LED chips.

APPLICATIONS

  • Warehouses
  • Manufacturing plants
  • Distribution centers
  • Industrial commercial spaces
  • Grocery stores
  • Gymnasiums
