G4 Dimmable Linear Highbay 120LM/W, Tunable 200W/100W/150W, 4000K 120-277V, Frosted Pc Lens

By Westgate Manufacturing

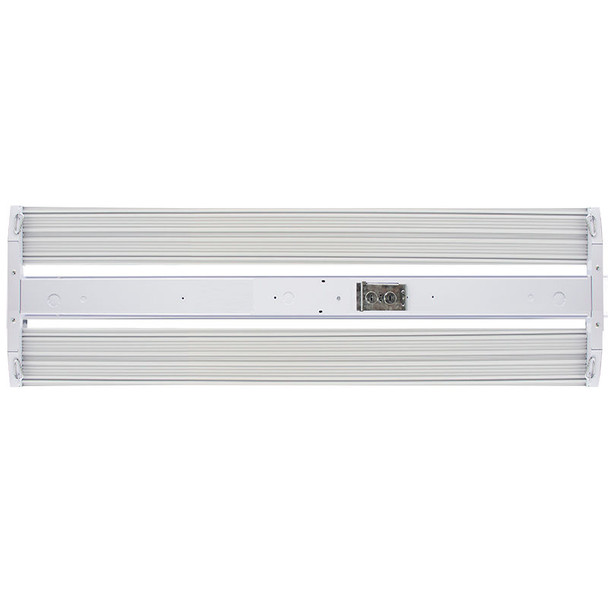

Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable
Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

G4 Dimmable Linear Highbay 120LM/W, Tunable 200W/100W/150W, 4000K 120-277V, Frosted Pc Lens

$228.95
MSRP: $257.90
You save $ 28.95 (11%)
  • SKU: WM-LLHB4-200W-MP-40K-D
  • MPN: LLHB4-200W-MP-40K-D

Quick Overview

G4 Dimmable Linear Highbay 120LM/W, Tunable 200W/100W/150W, 4000K 120-277V, Frosted Pc Lens (wattage: 100W/150W/200W; lumens: 27200; efficacy: 125LM/W; CCT: 4000K; voltage: 120-277V)

IP20
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 8
Free shipping on this item
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate LLHB4 Series Linear High Bay, 200W Multi-Power, 4000K, Dimmable is a versatile and energy-efficient lighting solution designed for large indoor spaces. As part of Westgate's fourth-generation high bay lineup, this fixture delivers outstanding performance and reliability for demanding commercial and industrial environments.

Key Features and Benefits

  • Selectable wattages (100W, 150W, 200W) for tailored light output
  • High efficacy up to 155 lumens per watt for maximum energy savings
  • Polycarbonate lens and steel housing for durability and safety
  • 0-10V dimmable for flexible lighting control
  • Wide beam angle for broad, even illumination
  • Long 50,000-hour rated life reduces maintenance costs
  • Multi-power switch located on the driver for easy adjustments
  • Suitable for damp locations and a wide temperature range
  • 5-year warranty for peace of mind

Specifications

  • Lumen output: 13,600lm (100W) | 20,400lm (150W) | 27,200lm (200W)
  • Wattage: 100W | 150W | 200W
  • Voltage: 120-277VAC
  • Color Temperature: 4000K
  • CRI: >80
  • Dimensions: 46-3/4" L x 13-3/4" W x 2" H
  • Operating temperature: -4°F to 131°F
  • Power factor: >0.95

Common Uses

Perfect for warehouses, manufacturing plants, distribution centers, gymnasiums, grocery stores, and other large indoor spaces with mounting heights from 10ft to 40ft. Ideal for replacing HID and fluorescent systems.

RESOURCES AND DOWNLOADS

Westgate LLHB4 Series Linear High Bay Spec Sheet

Westgate Resources and Downloads
