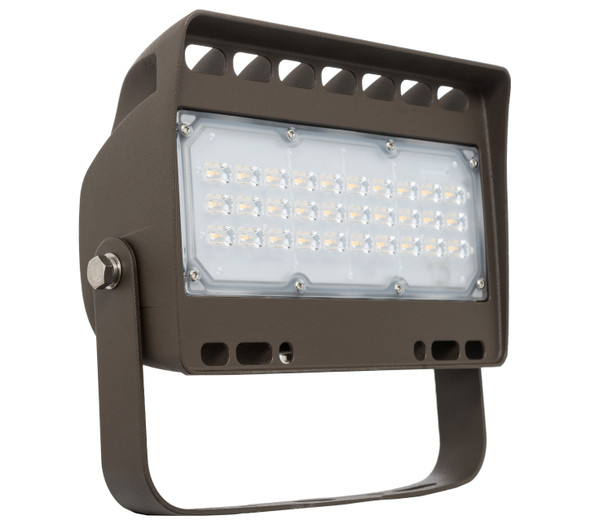

Architectural flood light, 50W/ 80W/ 100W/ 150W wattage selectable, 18,750 lumens maximum, available in 3000K/ 4000K/ 5000K/ 5700K CCT adjustable, suitable for wet locations, up to 70,000 hours rated life, 7 years warranty.
Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
FEATURES
- LED FLood Light
- With snap-on & bolt mounting options for one-person Installations.
- Select a mounting option (Sold separately)
- 70,000 Hours Rated Life
- 7-Year Warranty
- Optic Lens Type: III
- Multi-CCT & Multi-Power - The Switches are on the Bottom of the fixture
ELECTRICAL
- Voltage: 120~277VAC/50~60 Hz
- Wattage: 50W 80W 100W 150W
- Power factor: >0.9
- Efficacy: 125LPW
MECHANICAL
- Housing: Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze)
- 6KV Lighting Surge Protection
- IP Rating: IP65
- Operating Temperature: -40°F to 104°F
- Suitable for Wet Locations
- Effective projected areas (EPA’s) are:
Front = 0.38 square feet
Side = 0.30 square feet
Face = 1.05 square feet
LIGHTING
- Dimming: 0~10V dimmable
- LED: LUMILEDS 2835 LED
- Multi-CCT & Multi-Power - The Switches are on the Bottom of the Fixture
- Cord Type: 6' SJTW 18/3 AWG cable
- Total Lumens: 18750LM
- Color Temperature: 3000K/4000K/5000K/5700K
- Color Rendering Index:≥ 70
- Beam Angle: 120°x90°
RESOURCES AND DOWNLOADS
Architectural Flood Light, 50W-150W Power & CCT Adj. Spec Sheet
| SKU | WM-LF4PRO-50-150W-MCTP |
|---|---|
| Weight | 20.00 LBS |
| Light Source | LED |
| Fixture Size | 12 3/5" x 10 4/5" 4 1/4" |
| Driver Type | 120-277VAC |
| Lumen Output | 18,750lm max. |
| L70 Expected Life (hours) | 70,000hrs |
| Color Temperature (CCT) | 3000K/4000K/5000K/5700K |
| Total Input Watts | 50W/80W/100W/150W |
