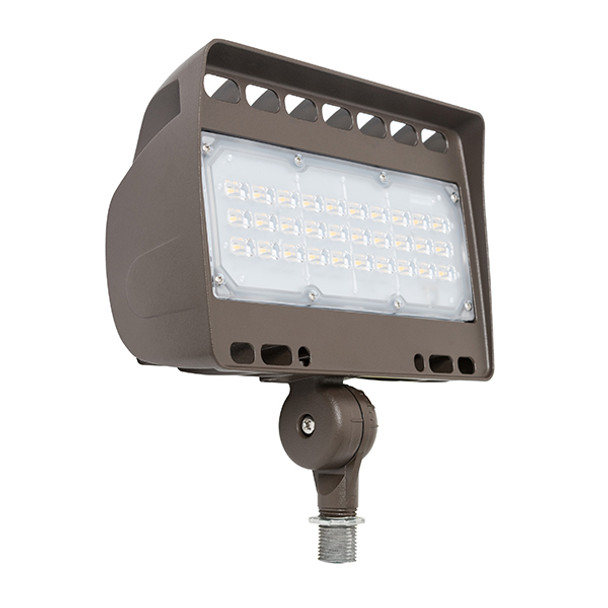

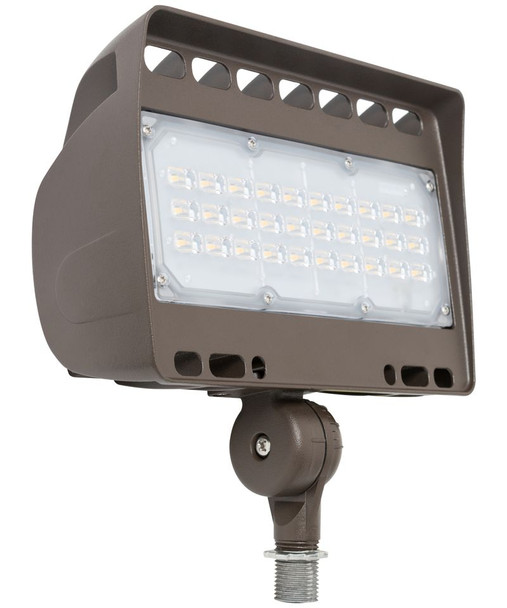

LF4 architectural series LED flood light with adjustable knuckle, 50 watts, 5,400 or 5,600 lumens, available in 3000K or 5000K color temperature (CCT), up to 50,000 hours working life, 5 years limited warranty.
Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas. Great for use with motion sensors and other instant on/off controls.
ELECTRICAL SPECIFICATIONS
- Voltage: 120-277VAC 50/60Hz
- Wattage: 50W
- Input current: 0.52A Max
- Power factor: >0.95
- Efficacy: 105LM/W~110LM/W
HOUSING SPECIFICATIONS
- Die-cast aluminum with powder coat finish (Dark Bronze)
- Operating temperature: -40°F ~ 104°F
- Lifespan: 50000 Hrs.
- IP rating: IP65, Wet Locations
- High light transmittance, anti-UV & fire resistant PC lens
CERTIFICATIONS
UL, DLC
LIGHTING SPECIFICATIONS
- LED type/brand: Philips Lumileds LEDs / SMD 3030
- Total lumens: 5400LM and 5600LM
- Color temperature: 3000K / 5000K
- Color rendering index: >82
- Beam angle: 90° x 120°
WARRANTY
5 years

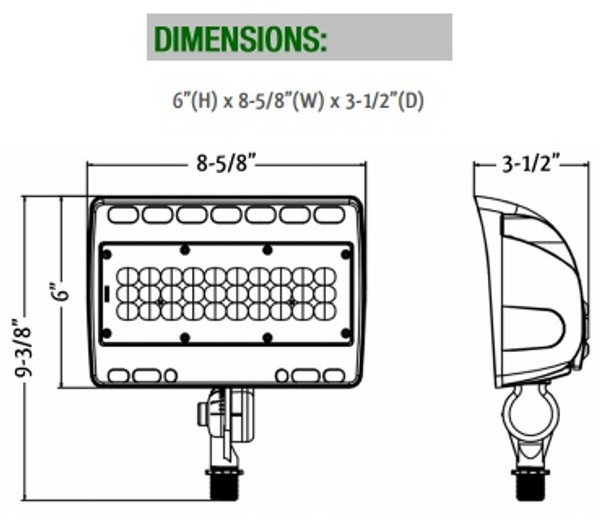

DIMENSIONS
6”(H) x 8-5/8”(W) x 3-1/2”(D)
RESOURCES AND DOWNLOADS
SKU | WM-LF4-50-KN |
---|---|
Weight | 6.00 LBS |
Light Source | LED |
Fixture Size | Other |
Color Rendering Index (CRI) | >82 |
Driver Type | 120-277VAC 50/60Hz |
Lumen Output | 5,400 or 5,600 |
Luminaire Efficacy Rating (LER) | 105LM/W~110LM/W |
L70 Expected Life (hours) | 50,000 hrs |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 5000K |
Total Input Watts | 50 |
