ProLED Select Compact Linear High Bay, Size 1, Lumen Selectable 14600/17100/19500, Color Selectable 3500K/4000K/5000K, 120-277V, Z10 Controls Ready

By Halco Lighting Technologies

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ProLED Select Compact Linear High Bay, Size 1, Lumen Selectable 14600/17100/19500, Color Selectable 3500K/4000K/5000K, 120-277V, Z10 Controls Ready

$114.50
  • SKU: HLT-CLHB-1-LS-CS-U
  • MPN: CLHB-1-LS-CS-U

Quick Overview

Compact linear LED high bay with selectable 14,600/17,100/19,500 lumens, 90W/110W/130W, 3500K/4000K/5000K, and adjustable beam angles for warehouses, gyms, and large indoor commercial spaces.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Halco ProLED Select Compact Linear High Bay Series is built for high-ceiling commercial and industrial spaces that need flexible, high-performance illumination. This CLHB-1 configuration combines selectable output, CCT, and beam distribution in a compact form factor, making it a core solution in Halco’s modern high bay lineup.

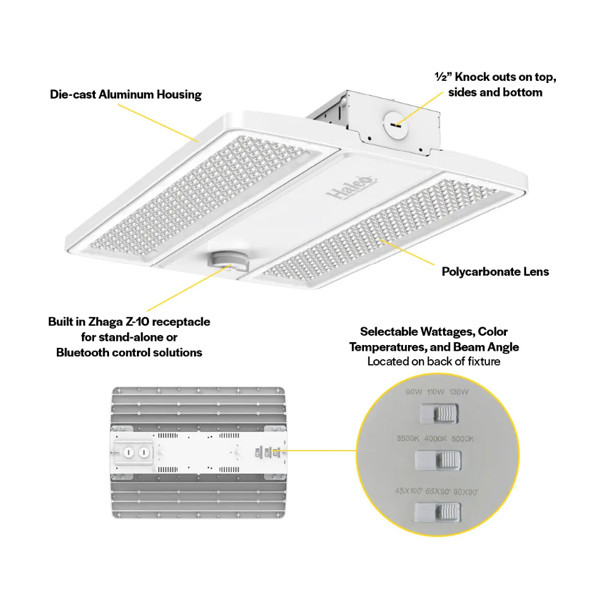

Key Features and Benefits

  • Field-selectable light output and wattage let you fine-tune performance on site without changing fixtures.
  • Selectable beam patterns support narrow, standard, or wide distribution to match aisle, open-area, or mixed layouts.
  • Integrated Zhaga Z10 receptacle enables easy sensor and Bluetooth control upgrades for smarter energy management.
  • Durable die-cast aluminum body improves thermal management for long service life in demanding environments.
  • 0-10V dimming compatibility supports advanced lighting control strategies and additional energy savings.
  • DLC Premium, cULus, FCC, and RoHS compliance with a 5-year limited warranty for dependable commercial deployment.

Specifications

  • Lumen Output: 14600|17100|19500
  • Wattage: 90W|110W|130W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Beam Angle: 45°x100°|65°x90°|90°x90°
  • Efficacy (lm/W): up to 166
  • Rated Life (L70): 100000+
  • Power Factor: >0.9
  • Dimming Type: 0-10V
  • Operating Temperature: -40°C to 55°C
  • IP Rating: IP20
  • Mounting: Chain and V-hook (standard)
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate
  • Weight: 7 lbs

Common Uses

Ideal for warehouses, gymnasiums, retail back-of-house areas, manufacturing spaces, and other large indoor environments requiring efficient, adaptable high bay lighting.
