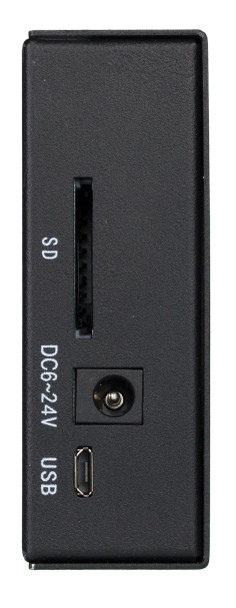

Proluxe Pixel DMX Address Writer, 6-24VDC, IP20, 3.6" Touch Screen, USB Type-C Power Input, SD Card Compatible

By American Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Proluxe Pixel DMX Address Writer, 6-24VDC, IP20, 3.6" Touch Screen, USB Type-C Power Input, SD Card Compatible

$447.65
  • SKU: AL-PLX-WRITER-PXL
  • MPN: PLX-WRITER-PXL

Quick Overview

6-24VDC Pixel DMX address writer for programming pixel-based luminaires with a 3.6" touch screen, SD card scene storage, multi-protocol chip support, and built-in test animations for fast commissioning.

IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Proluxe PLX-WRITER-PXL is a dedicated Pixel DMX Address Writer designed to streamline setup and commissioning of pixel-based LED lighting systems. As part of the Proluxe control ecosystem, it provides fast address writing, protocol flexibility, and on-device testing for reliable field deployment. Its compact form and touch interface make it a practical tool for installers and integrators working on dynamic lighting projects.

Key Features and Benefits

  • Speeds up DMX512 pixel addressing with intuitive on-screen controls and quick write confirmation.
  • Built-in AUTO test animations help verify addressing accuracy before final handoff.
  • Supports broad protocol families (DMX, GS, HI, HM, SM, TM, UCS) for compatibility across many pixel chipsets.
  • 3.6" touch display simplifies parameter setup including lamp number, channel count, and start address.
  • SD card support enables scene storage and recall for repeatable commissioning workflows.
  • Operates in indoor dry environments with an IP20 rating and a wide -20°C to 50°C operating range.

Specifications

  • Input Voltage: 6-24VDC
  • Ingress Protection: IP20
  • Operating Temperature: -20°C to 50°C
  • Display Size: 3.6" touch screen
  • Power Interface: USB Type-C (power supply support)
  • Additional Storage: SD memory card slot
  • Signal Output: TTL Signal (CLK, DATA, GND)
  • Approximate Dimensions: 5.2" x 3.44" x 1.67"

Common Uses

Ideal for DMX pixel commissioning in architectural lighting, entertainment installations, façade lighting, and custom RGB/RGBW LED projects where accurate addressing and quick verification are essential.
