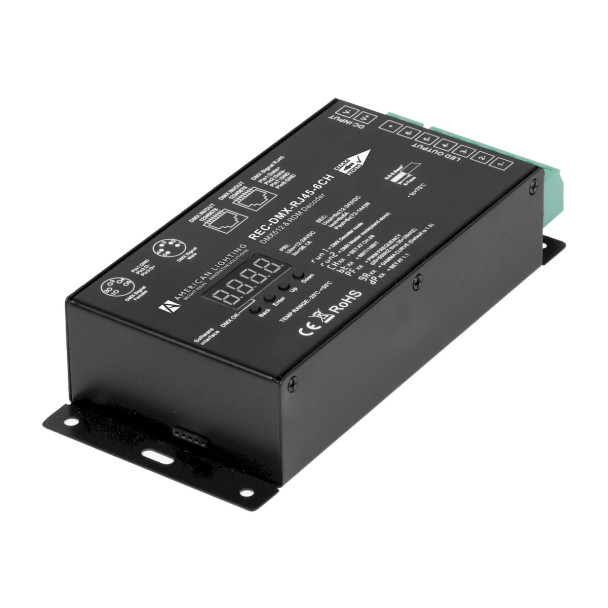

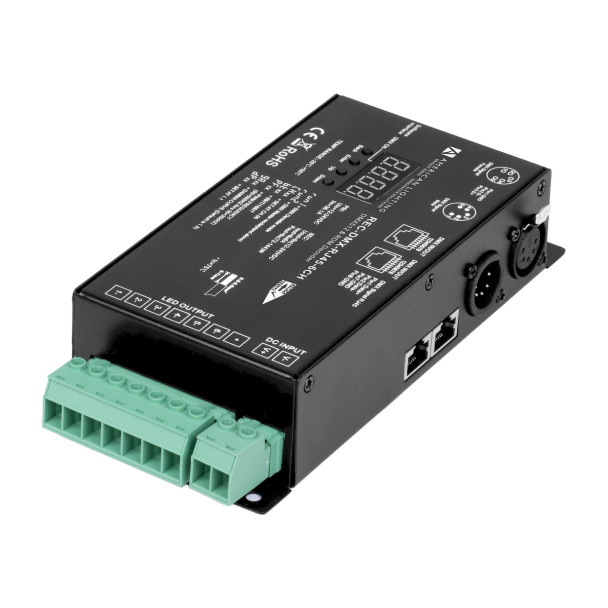

Proluxe 6CH DMX Decoder, RJ45/XLR5/Direct Wire, 12-24VDC, 6x6A Output, Black

By American Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Proluxe 6CH DMX Decoder, RJ45/XLR5/Direct Wire, 12-24VDC, 6x6A Output, Black

$239.45
  • SKU: AL-PLX-DECRJ45-DMX-6CH
  • MPN: PLX-DECRJ45-DMX-6CH

Quick Overview

6-channel DMX512 RDM decoder for tape lighting systems with RJ45, XLR5, or direct-wire connectivity, 12-24VDC input, 6A per channel output, adjustable PWM frequency, and standalone or decoder operation.

WARRANTY 3 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Proluxe 6CH DMX Decoder is a professional control interface designed to translate DMX512 RDM signals for multi-channel LED tape light applications. As part of Proluxe’s controls lineup, it provides flexible wiring options and precise dimming performance for advanced lighting installations.

Key Features and Benefits

  • Supports DMX512 RDM protocol for reliable, intelligent lighting control integration
  • Flexible connectivity with RJ45, XLR5, and direct-wire compatibility to simplify system design
  • Fine dimming control with selectable 8-bit or 16-bit PWM resolution and adjustable gamma curve (0.1-9.9)
  • Wide PWM frequency adjustment from 500Hz to 30KHz for optimized performance across LED loads
  • Durable metal housing with onboard digital display for quick setup and status visibility
  • FCC and RoHS compliant design backed by a 3-year limited warranty

Specifications

  • Input Voltage: 12-24VDC
  • Input Current: 36.1A
  • Output Current: 6x6A
  • Output Wattage: 6x(72-144)W
  • Channels: 6
  • Storage Temperature: -4°F to 122°F (-20°C to 50°C)
  • Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
  • Operating Temperature: 167°F (75°C)
  • Finish: Black
  • Dimensions: 7.39" x 3.35" x 1.61"

Common Uses

Ideal for architectural and entertainment LED tape light systems, including RGB/RGBW/tunable white installations in commercial interiors, hospitality spaces, retail displays, and custom accent lighting projects requiring DMX-based multi-channel control.

RESOURCES AND DOWNLOADS

Proluxe 6CH DMX Decoder Spec Sheet
