Description

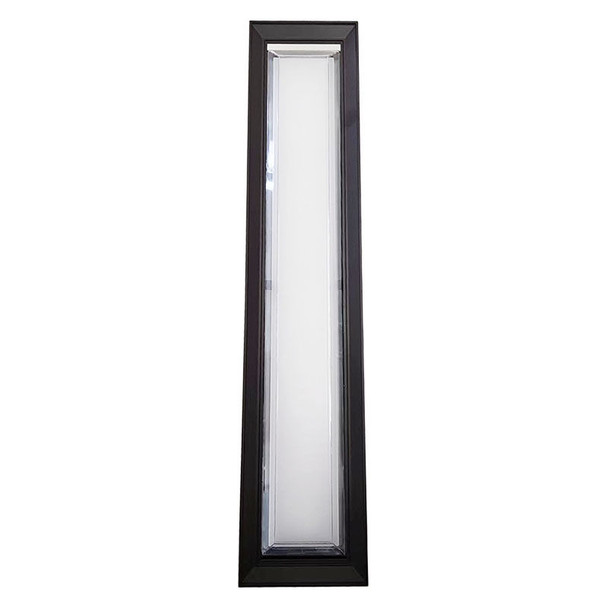

25W R Series Residential/Commercial Sconce with selectable color temperatures (2700K/3000K/3500K/4000K/5000K) and adjustable lumen outputs up to 1875LM.

Key Features and Benefits

Selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
Adjustable lumen outputs up to 1875LM
High efficacy of 75 LPW
Long lifespan of 70,000 hours
High CRI (≥90) for accurate color rendering
Dual dimming capability: Triac Dimmable at 120V and 0-10V Dimming at 120-277V

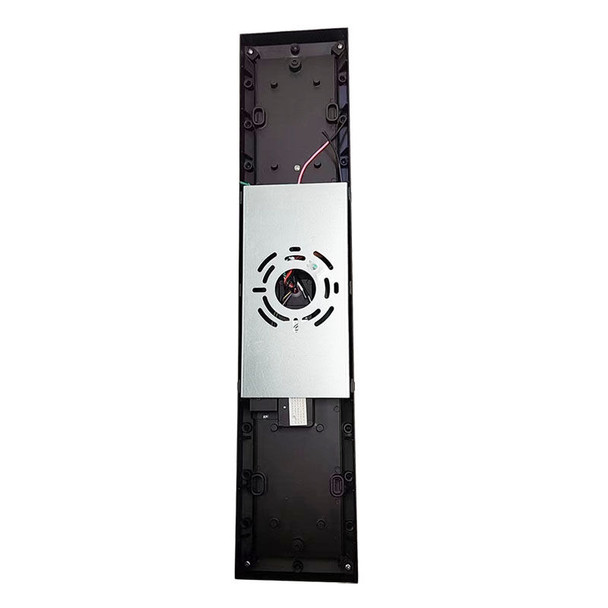

Die-cast aluminum back plate with polycarbonate lens
IP44 rating, suitable for wet locations
7-year warranty

Specifications

Wattage: 25W
Voltage: 120V AC 60Hz
Efficacy: 75 LPW
Total Lumens: 1875LM
Color Temperatures: 2700K/3000K/3500K/4000K/5000K
Color Rendering Index: CRI ≥ 90
Beam Angle: 90° x 110°
Operating Temperature: -4ºF to 104ºF
Rated Life: 70,000 hours
IP44, Suitable For Wet Location
Dimensions: 23.6"(W) x 5"(H) x 3"(D)

Common Uses

General site lighting, loading docks, doorways, pathways, and parking areas.

RESOURCES AND DOWNLOADS

R Series Residential/Commercial Sconce Spec Sheet

Details

Beam Angle:	150°-160°
CRI:	80
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|ETL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V\|Phase
Finish / Color:	Bronze
Housing Material:	Aluminum
Item Height (Inch):	3.00
Item Length (Inch):	23.63
Item Weight (LBS):	1.46
Item Width (Inch):	5.00
L70 Expected Life (hours):	50,000hr
LED Type:	HONGLI 2835
Lens Material:	White PC lens
Lumen Output:	1875
Operating Temperature:	-40°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
THD:	<20%
Wattage:	25W
