Description

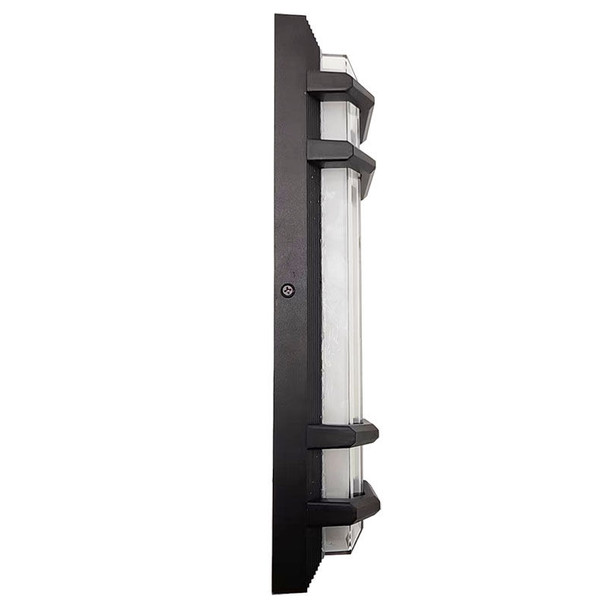

20W modern wall sconce with selectable color temperatures (2700K/3000K/3500K/4000K/5000K) and adjustable lumen output of 1500LM. Ideal for various lighting applications.

Key Features and Benefits

Multi CCT Switch is Inside Fixture
Triac Dimmable at 120V & 0-10V Dimming at 120-277V
Die-Cast Aluminum Back Plate with Mounting/Gasket Installed
Polycarbonate Lens
IP44, Suitable For Wet Location
7-Year Warranty
Rated Life: 70,000 Hrs

Specifications

Voltage: 120V AC 60Hz
Wattage: 20W
Power Factor: >0.90
Efficacy: 75 LPW
Total Lumens: 1500LM
Color Temperatures: 2700K/3000K/3500K/4000K/5000K
Color Rendering Index: CRI ≥ 90
Beam Angle: 90° x 110°
Operating Temperature: -4ºF to 104ºF

Common Uses

General site lighting, loading docks, doorways, pathways, and parking areas.

RESOURCES AND DOWNLOADS

T Series Modern Wall Sconce 20W Spec Sheet

Details

Beam Angle:	150°-160°
CRI:	80
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|ETL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V\|Phase
Finish / Color:	Bronze
Housing Material:	Aluminum
Item Height (Inch):	3.00
Item Length (Inch):	15.75
Item Weight (LBS):	1.16
Item Width (Inch):	5.00
L70 Expected Life (hours):	50,000hr
LED Type:	HONGLI 2835
Lens Material:	White PC lens
Lumen Output:	1500
Operating Temperature:	-40°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
THD:	<20%
Wattage:	20W
