Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V

By Halco Lighting Technologies
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V
Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Retrofit Commercial Downlight with Emergency Battery Ready, 8", Lumen Selectable, Color Selectable 2700K/3000K/3500K/4000K/5000K, Haze Reflector with White Flange, Dual Dimming, 120-277V

$99.75
  • SKU: HLT-CDLEM-8-LS-CS-HZWH-DDV
  • MPN: CDLEM-8-LS-CS-HZWH-DDV

Quick Overview

Halco 8" retrofit commercial downlight with emergency battery readiness, selectable lumens (1800/2700/3500), 2700K-5000K CCT, 0-10V or TRIAC/ELV dimming, 120-277V input, 90+ CRI, and wet-location rated IP65 design.

ETL Listed
Energy Star
Title 24 Compliant
WET RATED
IC RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Halco CDLEM Retrofit Commercial Downlight is a flexible 8" LED solution designed for modern commercial retrofit projects that need performance, visual comfort, and emergency-ready capability. As part of Halco’s CDL family, this model combines field-selectable lumen output and CCT with broad dimming compatibility to simplify specification and installation.

Key Features and Benefits

  • Field-adjustable light levels and CCT let you tune output on-site for changing space requirements.
  • Dual-dimming driver supports both 0-10V and TRIAC/ELV controls, reducing compatibility concerns during retrofits.

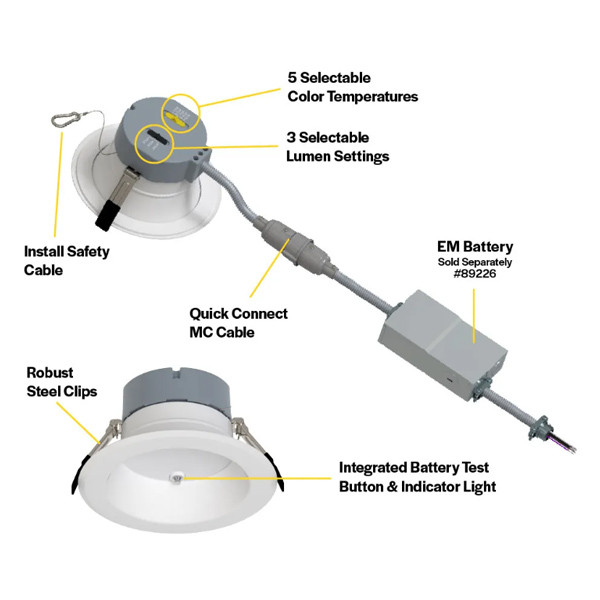

  • Emergency battery-ready configuration supports integral backup operation when paired with the CDLEM-JB accessory.
  • Haze reflector with white flange delivers a clean architectural appearance for commercial interiors.
  • Certified for demanding projects with ETL Listed, FCC, RoHS, Energy Star, and Title 24 compliance.
  • Backed by a 5-year limited warranty for long-term confidence.

Specifications

  • Lumen Output: 1800/2700/3500
  • Wattage: 17W/25W/31W
  • Voltage: 120-277V, 50/60Hz
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K
  • CRI: 90+
  • Beam Angle: 80° ± 10°
  • Power Factor: 0.9
  • Rated Life (L70): 50,000 hours
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C)
  • Construction: Spun aluminum haze reflector with diffused textured lens
  • Environment: IC rated, air tight, wet location, IP65
  • Weight: 2.0 lbs

Common Uses

Ideal for office parks, commercial buildings, maintenance facilities, schools, universities, and big-box retail spaces where efficient, selectable, and code-compliant recessed lighting is required.

RESOURCES AND DOWNLOADS

Retrofit Commercial Downlight with Emergency Battery Ready Spec Sheet
