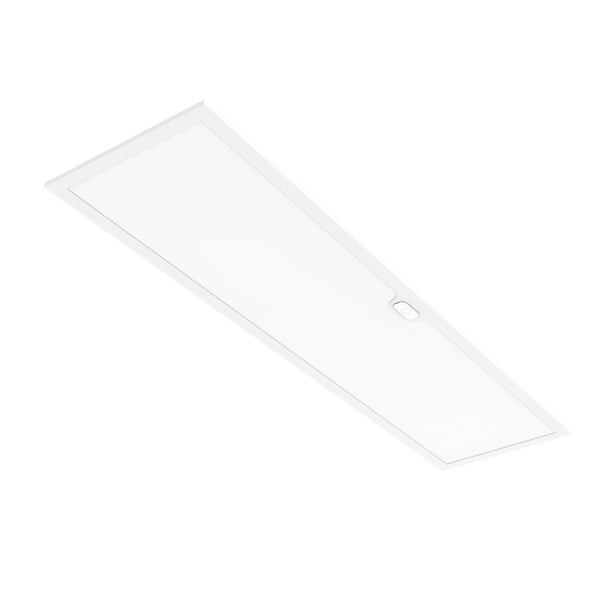

VPAN Select Back-Lit Flat Panel, 1x4, 2500/2800/3500/4200/4900lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VPAN Select Back-Lit Flat Panel, 1x4, 2500/2800/3500/4200/4900lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2, Controls Ready

$63.10
  • SKU: ILP-VPAN14-25L/49L-U-CCTS-G2-CR
  • MPN: VPAN14-25L/49L-U-CCTS-G2-CR

Quick Overview

1x4 back-lit LED flat panel with selectable lumen output and CCT, 0-10V dimming, IC rating, and damp-location suitability for offices, education, healthcare, and retail ceiling grid applications.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series delivers flexible, high-performance back-lit panel lighting for modern commercial interiors. This 1x4 Gen 2 controls-ready model is designed for visual comfort, easy field adjustability, and dependable long-life operation across a wide range of projects.

Key Features and Benefits

  • Selectable lumen packages and 5-CCT tuning simplify stocking and allow on-site lighting customization.
  • Back-lit architecture with PMMA frosted lens and micro-optics helps reduce glare while maintaining smooth, uniform illumination.
  • Built for demanding ceiling environments with robust die-formed steel construction and Type IC insulation-contact capability.
  • 0-10V dimming support enables energy-saving control strategies and adaptable light levels.
  • ETL Listed for U.S. and Canada, damp-location suitable, and Title 24 compliant when paired with qualifying sensor options.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 2391|2542|2558|2615|2600 to 4598|4888|4919|5030|5000 (model/CCT dependent)
  • Wattage: 17.5W|19.4W|24.3W|29.0W|33.6W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: >80
  • Dimming: 0-10V (10%-100%)
  • Power Factor: >0.90
  • Rated Life (L70): >100000 hours
  • Efficacy: up to 161 lm/W (table values up to 156 lm/W for this configuration)
  • Ambient Operating Temperature: -4°F to 104°F
  • Fixture Size: 47.8" x 11.9" x 1.3"
  • Lens Material: PMMA frosted acrylic

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor grid-ceiling applications requiring efficient, low-glare general illumination.
