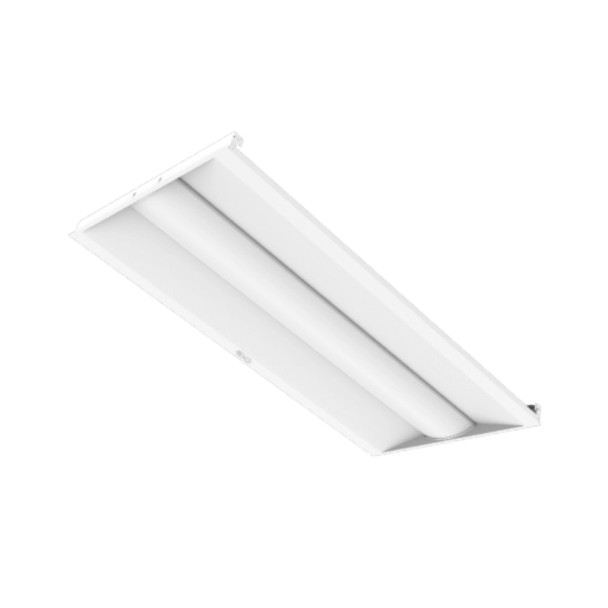

VST Volumetric Selectable Troffer, 2x4, 4000lm Selectable, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VST Volumetric Selectable Troffer, 2x4, 4000lm Selectable, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2, Controls Ready

$96.95
  • SKU: ILP-VST24-40L-U-CCTS-G2-CR
  • MPN: VST24-40L-U-CCTS-G2-CR

Quick Overview

2x4 volumetric LED troffer with selectable 4000 lumen and 2700K-5000K CCT, 120-277V input, 0-10V dimming, IC and damp location rating, and controls-ready design for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Gen 2 Volumetric Selectable Troffer is a versatile recessed 2x4 fixture engineered for modern commercial interiors. Designed for low plenum spaces, it combines field-selectable light output and color temperature with a clean volumetric appearance to simplify project standardization across multiple room types.

Key Features and Benefits

  • Selectable output package lets installers set 2500, 3000, 4000, or 5000 lumens in the field for flexible light levels.
  • Five-position CCT selection (2700K to 5000K) supports warm-to-cool tuning for varied visual tasks and environments.
  • Ultra-shallow 2.1" housing profile helps fit tight ceiling plenums while maintaining a refined architectural look.
  • Controls-ready configuration supports NUROAir sensor integration for occupancy/daylight-based energy savings.
  • ETL Listed for U.S. and Canadian standards, Type IC suitable, damp-location suitable, and Title 24 compliant with sensor option.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 3989-4335 lm
  • Wattage: 28W
  • Voltage: 120-277V
  • Dimming: 0-10V (10%-100%)
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K
  • CRI: >80
  • Efficacy: up to 180 lm/W
  • Rated Life (L70): >100,000 hours
  • Operating Ambient: -20°C to 40°C
  • Construction: Steel housing with matte white finish
  • Lens: High-transmission frosted polycarbonate
  • Mounting: Recessed in 9/16" and 15/16" T-grid (flange and surface kits available)

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail areas, and storage facilities where efficient, configurable general lighting and clean ceiling integration are required.
