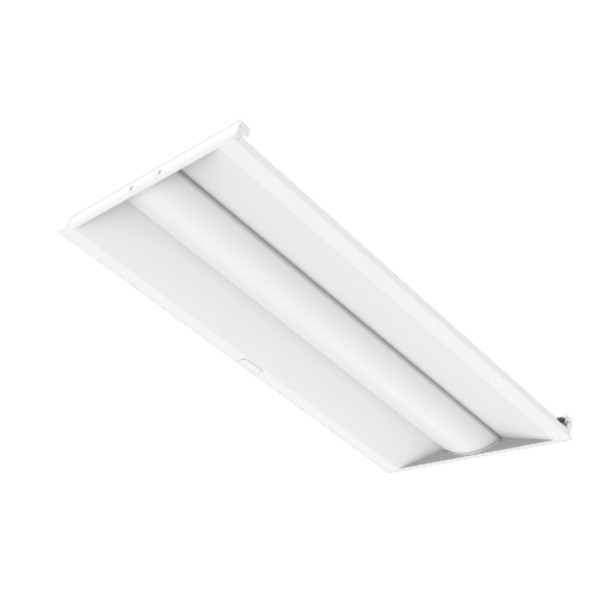

VST Volumetric Selectable Troffer, 2x4, 8000lm, 55W, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VST Volumetric Selectable Troffer, 2x4, 8000lm, 55W, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Controls Ready

$104.65
  • SKU: ILP-VST24-80L-U-CCTS-G2-CR
  • MPN: VST24-80L-U-CCTS-G2-CR

Quick Overview

ILP VST 2x4 volumetric selectable troffer delivers up to 8000 lumens at 55W with 120-277V input, 0-10V dimming, selectable 2700K-5000K CCT, and controls-ready design for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Volumetric Selectable Troffer is a low-profile architectural troffer designed for modern commercial interiors that need flexibility, efficiency, and visual comfort. As part of ILP’s controls-ready lineup, it combines selectable lumen packages and selectable CCT in one fixture to simplify stocking and field configuration.

Key Features and Benefits

  • Field-selectable output supports multiple lumen settings up to 8000 lumens for adaptable light levels.
  • Selectable CCT (2700K through 5000K) allows one fixture to match varied space requirements.
  • Ultra-shallow 2.1" housing helps fit low plenum ceilings while maintaining a clean volumetric appearance.
  • 0-10V dimming (10%-100%) and controls-ready platform support advanced energy-saving strategies.
  • ETL Listed for US and Canadian standards, Type IC rated, and damp-location suitable for broad code-compliant use.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 8000 lm
  • Wattage: 55W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80
  • Power Factor: 0.90
  • Rated Life (L70): 100000
  • Efficacy: up to 180 lm/W
  • Ambient Operating Range: -20°C to 40°C
  • Mounting: Recessed T-grid (9/16" and 15/16"), optional flange or surface mount kits
  • Lens: High-transmission frosted polycarbonate
  • Housing: Steel, matte white finish

Common Uses

Ideal for education facilities, healthcare buildings, commercial offices, retail environments, and storage facilities where efficient, tunable general illumination and controls integration are priorities.
