Description

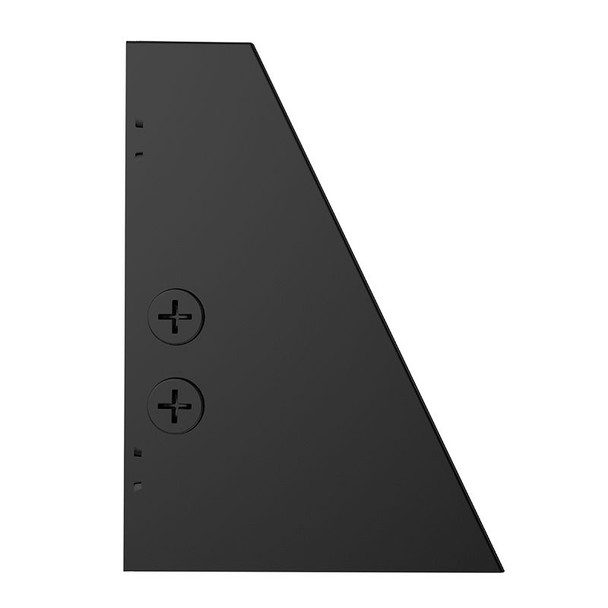

The Westgate WPMAX Series LED Wall Pack in black finish is a versatile outdoor lighting solution, offering selectable wattages (40W/50W/60W) and color temperatures (3000K/4000K/5000K). Designed for maximum efficiency and flexibility, this wall pack is perfect for commercial, industrial, and residential applications where security, visibility, and energy savings are essential.

Key Features and Benefits

Selectable wattage (40W/50W/60W) and color temperature (3000K/4000K/5000K) for tailored lighting
High efficacy at 135 lumens per watt for energy savings
Prismatic borosilicate glass lens for even light distribution
Adjustable beam angles: narrow, medium, and wide
Durable ADC12 aluminum heat sink with outdoor powder coating
Integrated photocell for dusk-to-dawn operation
0-10V dimming compatibility
IP65 rated for wet locations and harsh environments
Long 70,000-hour rated lifespan and 7-year warranty

Specifications

Wattage: 40W | 50W | 60W
Lumens: 5400lm | 6750lm | 8100lm
Voltage: 120-277V AC
Color Temperature: 3000K | 4000K | 5000K
CRI: >70
Dimensions: 8.3"(W) x 6.69"(H) x 5.43"(D)
IP65, Wet Location Rated
BUG Rating: B2-U3-G3

Common Uses

Ideal for building exteriors, entrances, courtyards, parking areas, hotels, and general outdoor security lighting where flexibility and energy efficiency are priorities.

RESOURCES AND DOWNLOADS

Westgate WPMAX Series LED Wall Pack Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	T2 T3 T4°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Dimming Type:	0-10V
Efficacy:	135LM/W
Finish / Color:	Black
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	5.86
Item Length (Inch):	13.34
Item Weight (LBS):	8.01
Item Width (Inch):	8.26
L70 Expected Life (hours):	>43,800hr
LED Type:	B3-U0-G2
Lumen Output:	8100\|5400\|6750
Operating Temperature:	-40?~+45? _x000D__x000D_ -40°F~+113°F
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable CCT\|Selectable Wattage\|Selectable Lumen Output\|Photocell Included
THD:	<20%
Voltage:	120-277V
Wattage:	40W\|50W\|60W
