BEAM-ADJ. Wall Pack 60/80/100W 3CCT With Photocell

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

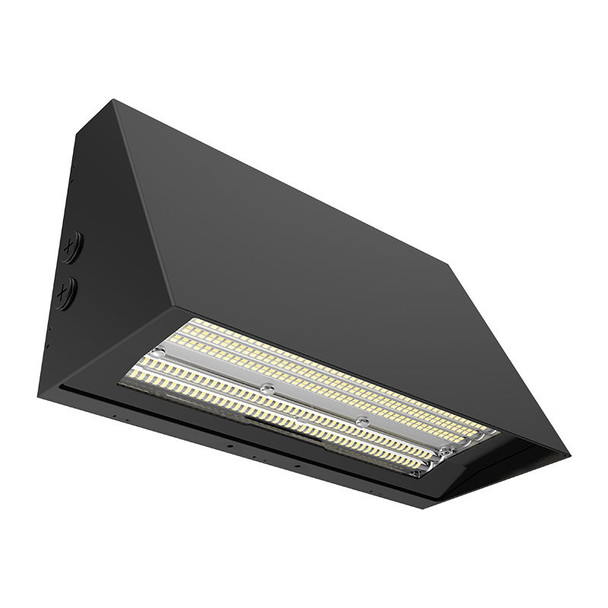

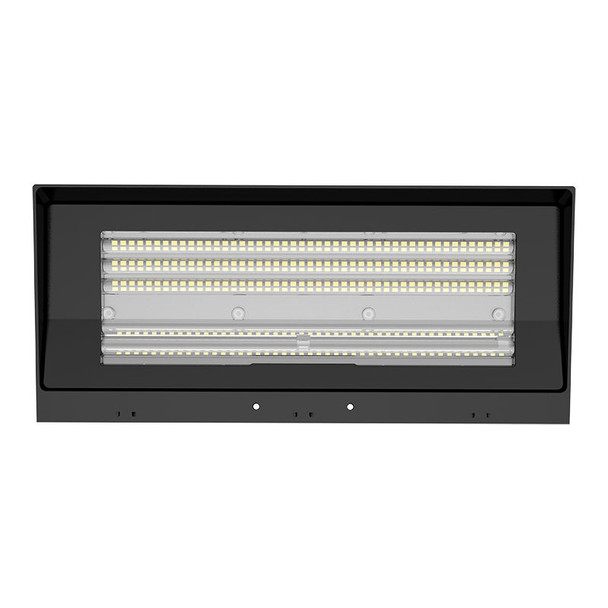

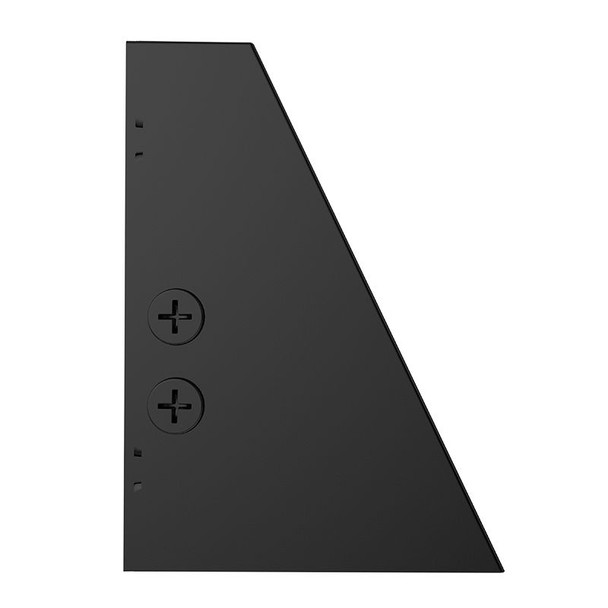

BEAM-ADJ. Wall Pack 60/80/100W 3CCT With Photocell

$170.05
MSRP: $188.78
You save $ 18.73 (10%)
  • SKU: WM-WPMAX-60-100W-MCTP-BK
  • MPN: WPMAX-60-100W-MCTP-BK

Quick Overview

BEAM-ADJ. Wall Pack 60/80/100W 3CCT With Photocell (wattage: 60W/80W/100W; lumens: 6075; efficacy: 135LM/W; CCT: 30K/40K/50K; voltage: 120-277V)

IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 41
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate WPMAX Series LED Wall Pack in black finish is a versatile outdoor lighting solution, offering selectable wattage (60W/80W/100W) and color temperature (3000K/4000K/5000K) for tailored performance. This fixture stands out in Westgate’s lineup for its energy efficiency, robust construction, and adaptability, making it ideal for a wide range of commercial, industrial, and residential applications.

Key Features and Benefits

  • Selectable wattage and color temperature for ultimate flexibility
  • High efficacy up to 135 LPW for energy savings
  • Adjustable beam throw: narrow, medium, or wide
  • Prismatic borosilicate glass lens for optimal light distribution
  • Durable ADC12 aluminum heat sink with outdoor powder coating
  • Integrated photocell for dusk-to-dawn operation
  • 0-10V dimming compatibility
  • IP65 rated for wet locations
  • Long 70,000-hour rated lifespan and 7-year warranty

Specifications

  • Wattage: 60W|80W|100W selectable
  • Lumens: 8100lm|10800lm|13500lm
  • Voltage: 120-277V
  • Color Temperature: 3000K|4000K|5000K selectable
  • CRI: >70
  • Dimensions: 13.34"(W) x 8.26"(H) x 5.86"(D)
  • Operating Temp: -40°F to 122°F
  • BUG Rating: B2-U3-G3

Common Uses

Perfect for building perimeters, entrances, courtyards, industrial exteriors, hotels, and general security lighting where flexibility and efficiency are key.
