Max Flood 3CCT 20/30/50W Digital Beam Angel Knuckle Photocell Brz

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

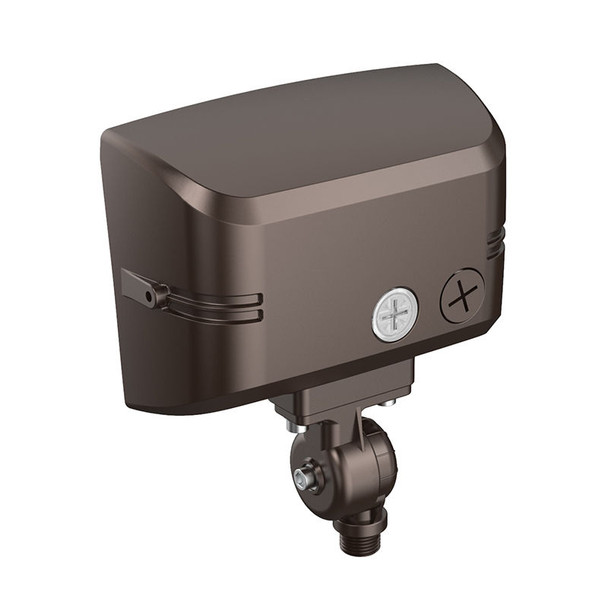

Max Flood 3CCT 20/30/50W Digital Beam Angel Knuckle Photocell Brz

$101.74
MSRP: $114.78
You save $ 13.04 (11%)
  • SKU: WM-LF4MAX-MD-20-50W-MCTPB-KN-P-
  • MPN: LF4MAX-MD-20-50W-MCTPB-KN-P-

Quick Overview

Max Flood 3CCT 20/30/50W Digital Beam Angel Knuckle Photocell Brz (wattage: 20W/30W/50W; lumens: 7000; efficacy: 140LM/W; CCT: 30K/40K/50K; voltage: AC120-277V)

UL Listed
DLC Premium
WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Round-back floodlight with U-bracket. Adjustable beam angle, selectable CCT (3000K/4000K/5000K), bronze, white and black finish options and wattage (20W/30W/50W).

Key Features and Benefits

  • Multi-CCT & Multi-Power with switches on the bottom
  • Photocell included with disconnect switch
  • Black, white and bronze finish options
  • 90° adjustable 1/2” knuckle mount
  • Die-cast aluminum housing with powder coat finish
  • IP65 rated for wet locations
  • 6KV lightning surge protection
  • 70,000 hours rated life
  • 7-year warranty

Specifications

  • Voltage: 120~277VAC/50~60 Hz
  • Wattage: 20W/30W/50W
  • Efficacy: 140LPW
  • Total Lumens: 7000LM
  • Color Temperature: 3000K/4000K/5000K
  • Color Rendering Index: ≥ 70
  • Adjustable Beam Angle: 135°x125°/120°x120°/90°x90°
  • Operating Temperature: -40°F to 104°F

Common Uses

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Suitable for replacing existing HID flood lights/wall packs.
