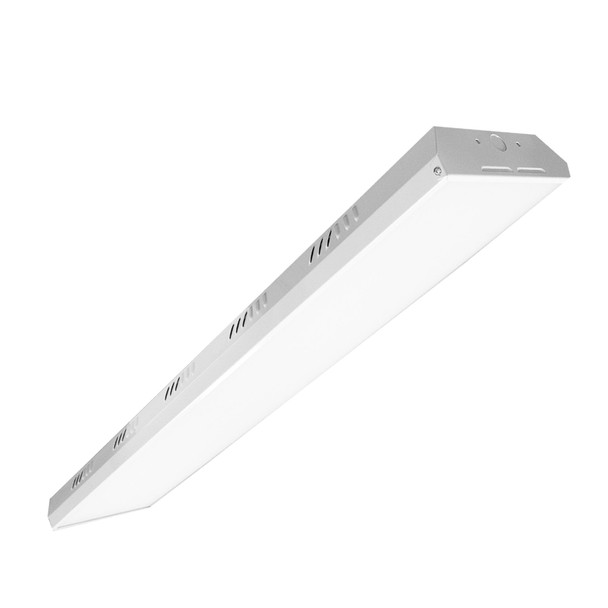

Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, Multi-Power, Dimmable, Sensor-Ready, 480V, 4000K|5000K

By Westgate Manufacturing
Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, Multi-Power, Dimmable, Sensor-Ready, 480V, 4000K|5000K
Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, 4000K, Dimmable, Sensor-Ready, Silver
Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, Multi-Power, Dimmable, Sensor-Ready, 480V, 4000K|5000K
Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, 4000K, Dimmable, Sensor-Ready, Silver

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, Multi-Power, Dimmable, Sensor-Ready, 480V, 4000K|5000K

$397.90
MSRP: $441.78
You save $ 43.88 (10%)
  • SKU: WM-LLHB-120-240W-MP-D-SR-480V
  • MPN: LLHB-120-240W-MP-D-SR-480V

Quick Overview

Westgate LLHB Series LED Linear High Bay, 120-240W Selectable, Multi-Power, Dimmable, Sensor-Ready, 480V, 4000K|5000K (wattage: 120W/180W/240W; lumens: 32400; efficacy: 135LM/W; CCT: 4000K; 5000K; voltage: 480V)

Availability: 1 business day
Unavailable
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate LLHB Series LED Linear High Bay is a top-tier industrial fixture, engineered for high performance and versatility in large indoor spaces. With selectable wattages (120W/180W/240W) and color temperatures (4000K/5000K), this fixture delivers up to 32,400 lumens and is sensor-ready for advanced controls. Its robust steel housing and frosted polycarbonate lens ensure durability and even light distribution, making it a standout choice for demanding environments.

Key Features and Benefits

  • Selectable wattage (120W, 180W, 240W) for adjustable light output
  • Switchable color temperatures: 4000K or 5000K
  • Delivers up to 32,400 lumens with high efficacy (135 lm/W)
  • Sensor-ready with pre-installed audio jack for motion sensors
  • Rugged steel housing and flame-retardant polycarbonate lens
  • Rated for 50,000 hours and backed by a 5-year warranty
  • 0-10V dimming for flexible lighting control
  • Wide operating temperature range and suitable for damp locations
  • Surge protection included for added reliability

Specifications

  • Wattage: 120W | 180W | 240W
  • Lumens: 16,200lm | 24,300lm | 32,400lm
  • Voltage: 480V
  • Color Temperature: 4000K | 5000K
  • CRI: >80
  • Dimensions: 46"(L) x 8-7/8"(W) x 2-6/8"(H)
  • Rated Life: 50,000 hours
  • Power Factor: >0.95
  • Dimming: 0-10V
  • Certifications: Suitable for damp locations

Common Uses

Perfect for warehouses, manufacturing plants, distribution centers, industrial facilities, grocery stores, and gymnasiums. Ideal for mounting heights from 10ft to 40ft and suitable for both surface and suspension mounting.

RESOURCES AND DOWNLOADS

Westgate LLHB Series LED Linear High Bay Spec Sheet
