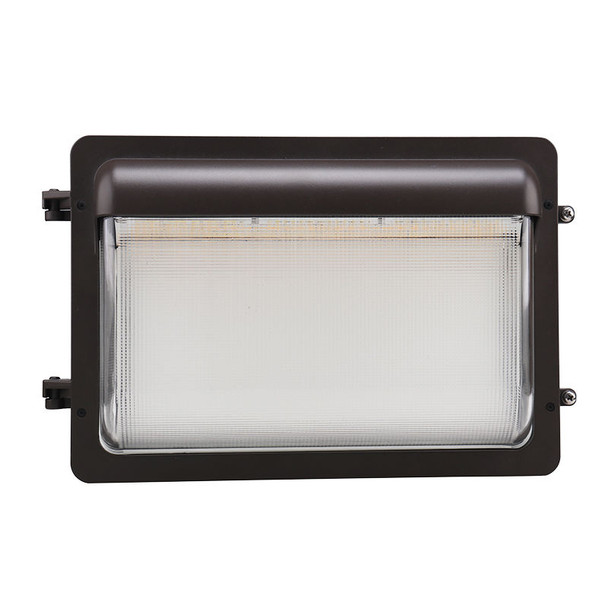

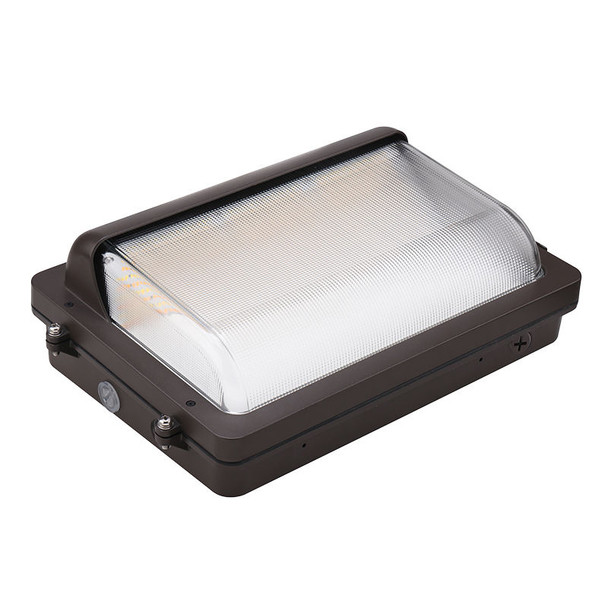

Westgate Flat Wall Pack Series: Superior Outdoor Lighting

The Westgate Flat Wall Pack series offers a versatile and highly efficient lighting solution ideal for numerous outdoor applications. Engineered with top-tier materials and cutting-edge technology, this lighting series ensures optimal performance and durability.

Key Features and Benefits

High Lumen Output: Available in 80W, 100W, and 120W options, providing up to 15,600 lumens of bright, effective lighting for any outdoor setting.
Adjustable Color Temperature: Choose from 3000K, 4000K, or 5000K to achieve the preferred ambience for your space.
Energy Efficient: Designed with energy efficiency in mind, helping you save on electricity costs while delivering superior illumination.
Long Lifespan: Boasting a lifespan of up to 70,000 hours, these lights require minimal maintenance.
Durable Construction: Constructed with die-cast aluminum and a powder coat finish, these wall packs are built to withstand harsh weather conditions.
Easy Installation: The units are simple to install, making them suitable for both residential and commercial uses.
Certifications: Meets industry standards and certifications for safety and quality assurance.

Technical Specifications

Voltage: 120-277V AC 60Hz
Wattage: 80W/100W/120W
Power Factor: >0.9
THD: <20%
Efficacy: 130 LPW
Total Lumens: 15,600LM Max
CRI: ≥80
Beam Angle: H127° x V85°
Dimensions: 17 4/5” (W) x 12 3/4” (H) x 4 1/2” (D)
Operating Temperature: -40ºF to 113ºF
Waterproof Rating: IP65, suitable for wet locations
Warranty: 7-year warranty

Common Uses

Ideal for building exteriors, alleys, doorways, pathways, parking areas, and more. These lights are perfect for commercial buildings, residential complexes, hotels, retail establishments, and any other outdoor area requiring robust lighting.

RESOURCES AND DOWNLOADS

Flat Wall Pack, 80W-120W Spec Sheet

Westgate Resources and Downloads

Spec Sheet

Details

BUG Rating:	B2-U2-G2
Beam Angle:	H127*V85°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	VIETNAM
Dimming Type:	0-10V
Efficacy:	130LM/W
Finish / Color:	Bronze
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	4.48
Item Length (Inch):	16.46
Item Weight (LBS):	8.15
Item Width (Inch):	12.76
L70 Expected Life (hours):	50000hrs
Lumen Output:	15600\|10400\|13000
Operating Temperature:	-40℃ TO 45℃, -25℃ TO 45℃
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	80W\|100W\|120W
