Name: FLOOD/AREA Ligh,t 120-277V
Brand: Westgate Manufacturing
SKU: WM-LFX-XS-15W
Price: 39.74 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

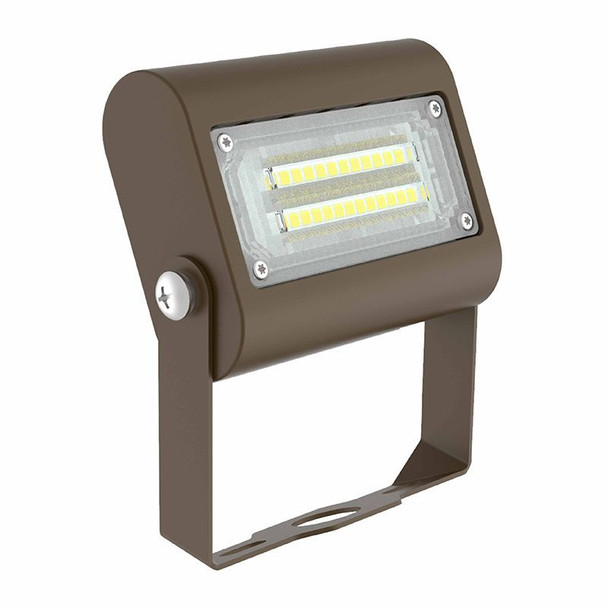

The X-Generation Extra Small Flood Light, SKU WM-LFX-XS-15W, is a powerful lighting solution offering 15 watts and 1,950 lumens of bright, efficient illumination. Available in color temperatures of 3000K, 4000K, and 5000K, this flood light ensures customized lighting to meet diverse needs. Rated for up to 70,000 hours of use, this robust unit is perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It serves as an effective replacement for traditional HID flood lights and wall packs, delivering superior performance and longevity.

One of the standout features of this flood light is its design focused on durability and high efficiency. Built with solid state lighting technology, this device requires no maintenance and delivers consistent performance over its long lifespan. Certified by DLC Premium, you can rely on its high lumen output and energy efficiency.

FEATURES

DLC Premium Listed & LED High-Lumen Flood Lights
Solid State Lighting Technology for Extended Lifespan
No Maintenance Required with High-Efficiency Performance
Rated for 70,000 Hours of Use
7-Year Limited Warranty
Type III Optic Lens

ELECTRICAL SPECIFICATIONS

Voltage: 120~277V AC, 50~60 Hz
Wattage: 15W
Power Factor: >0.9
Efficacy: 130 Lumens per Watt (LPW)

MECHANICAL FEATURES

Die-Cast Aluminum Housing with Powder Coat Finish Available in Dark Bronze and White
Philips Lumileds Luxeon 2835 High Flux LED
High Conductive Aluminum LED Board for Enhanced Efficiency
270° Adjustable Yoke Mount for Flexible Installation
IP65 Rated for Full Weather and Waterproof Protection
Operating Temperature: -40°F to 104°F
Suitable for Wet Locations

LIGHTING SPECIFICATIONS

0~10V Dimmable for Versatile Lighting Control
Optic Lens Type: III for Wide Distribution
13” #18 AWG Stranded Wires for Ease of Installation
Total Lumens: 1,950 LM
Color Temperature Options: 3000K, 4000K, 5000K
Color Rendering Index (CRI): ≥ 82
Beam Angle: 120° x 90° for Broad Illumination

RESOURCES AND DOWNLOADS

X-Gen. Extra Small 15W Flood Light (with U Bracket) Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B1-U0-G0
Beam Angle:	90°\|120°\|90° x 120°
CRI:	70
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|DLC Standard\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	Bronze
Fixture Size:	5.8"x5"x3.75"
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	1.75
Item Length (Inch):	6.375
Item Weight (LBS):	0.6613
Item Width (Inch):	4.375
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Optic Lens Type: III
Light Source:	LED
Lumen Output:	1950
Operating Temperature:	-40℉~+104℉
Power Factor:	>0. 9
Ships From:	CA
Special Features:	Selectable CCT
THD:	<20%
Voltage:	120-277V
Wattage:	15W
