Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Drop Lens

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Drop Lens

$115.74
MSRP: $130.78
You save $ 15.04 (12%)
  • SKU: WM-SCXT-L2FT-20-40W-MCTP-D-DL
  • UPC: 845060080858
  • MPN: SCXT-L2FT-20-40W-MCTP-D-DL

Quick Overview

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Drop Lens is a Westgate lighting product with wattage: 20W/30W/40W; lumens: 2200/3300/4400; CCT: 3000K/3500K/4000K/5000K; voltage: 120-277V; finish: White.

WARRANTY 5 YEARS
IP20
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 31
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

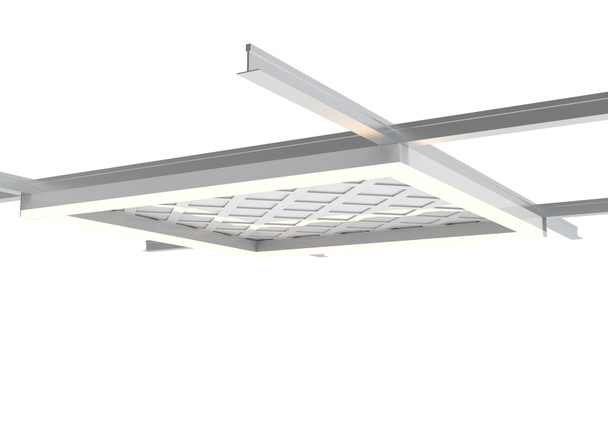

2Ft. L-Shape LED Fixture with Drop Lens, selectable color temperature 3000K/3500K/4000K, and adjustable lumen outputs 2200LM/3300LM/4400LM.

Key Features and Benefits

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 20W/30W/40W
  • Power Factor: >0.95
  • Total Harmonic Distortion: ≤ 20%
  • Efficacy: 110 LM/W
  • Color Temperatures: 3000K/3500K/4000K
  • Multi-CCT and Power (Selectable with Switch Inside the Fixture)
  • Color Rendering Index: CRI ≥ 80
  • Up Light Option Available
  • 50,000 Hours Rated Life
  • 5-Year Warranty
  • Beam Angle: 104.8°(H) x 100.5°(V)
  • Dimmable: 0~10V Dimming

Specifications

  • Total Lumens: 2200LM/3300LM/4400LM
  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 20W/30W/40W
  • Color Temperatures: 3000K/3500K/4000K
  • Color Rendering Index: CRI ≥ 80
  • Beam Angle: 104.8°(H) x 100.5°(V)

Common Uses

Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and other indoor applications.
