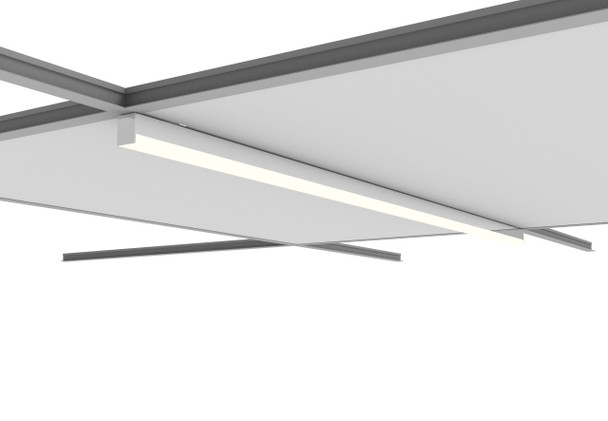

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Drop Lens, Black

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Drop Lens, Black

$122.74
MSRP: $137.78
You save $ 15.04 (11%)
  • SKU: WM-SCXT-L2FT-20-40W-MCTP-D-DL-BK
  • MPN: SCXT-L2FT-20-40W-MCTP-D-DL-BK

Quick Overview

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Drop Lens, Black is a Westgate lighting product with wattage: 20W/30W/40W; lumens: 110; CCT: 3000K/3500K/4000K/5000K; voltage: 120-277V; finish: Black.

IP20
Out of stock
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate SCXT Series 1' wide linear fixture is a modern commercial lighting solution designed for clean architectural lines and flexible installation. This L2FT configuration combines selectable wattage and CCT in one fixture, making it a practical choice for projects that need on-site adjustability. As part of Westgate’s SCXT lineup, it supports direct downlighting performance for offices, education, hospitality, and other indoor spaces.

Key Features and Benefits

  • Selectable output with built-in multi-power and multi-CCT switching for easier project standardization
  • Smooth 0-10V dimming control for energy savings and lighting comfort
  • Low-profile aluminum body with opal polycarbonate drop lens for a clean, glare-controlled appearance
  • Flexible mounting options including surface, suspended, recessed, and direct T-grid integration
  • Long 50,000-hour rated life reduces maintenance cycles in commercial environments
  • UL Listed with 5-year warranty for dependable code-ready performance

Specifications

  • Input voltage: 120-277VAC, 50/60Hz
  • Power selectable: 20W / 30W / 40W
  • Lumen output: 2200lm / 3300lm / 4400lm
  • Efficacy: 110 lm/W
  • CCT selectable: 3000K / 3500K / 4000K
  • CRI: ≥80
  • Power factor: >0.95; THD: ≤20%
  • Beam angle: 104.8° (H) x 100.5° (V)
  • IP rating: IP54
  • Operating temperature: -13°F to 104°F
  • Fixture dimensions: 25" (L) x 25" (W) x 1 1/3" (D)
  • Includes 6-1/2" pre-installed cable with male RJ11 connector; external driver required

Common Uses

Ideal for offices, conference and meeting rooms, corridors, reception areas, retail spaces, libraries, hotels, restaurants, storage rooms, and other indoor commercial applications requiring modern linear architectural lighting.
