Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Flat Lens, Black

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Flat Lens, Black

$122.74
MSRP: $137.78
You save $ 15.04 (11%)
  • SKU: WM-SCXT-L2FT-20-40W-MCTP-D-FL-BK
  • MPN: SCXT-L2FT-20-40W-MCTP-D-FL-BK

Quick Overview

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 20W/30W/40W, 3000K/3500K/4000K, Flat Lens, Black is a Westgate lighting product with wattage: 20W/30W/40W; lumens: 110; CCT: 3000K/3500K/4000K/5000K; voltage: 120-277V; finish: Black.

WARRANTY 5 YEARS
IP20
Out of stock
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate SCXT Series 1' wide linear fixture is a modern architectural lighting solution designed for clean ceiling integration and flexible installation. This L2FT configuration combines field-selectable power and CCT in one fixture, making it a versatile choice across commercial interiors. As part of Westgate’s commercial linear lineup, it delivers dependable performance, visual comfort, and adaptable design options.

Key Features and Benefits

  • Selectable output with built-in MCTP switching for 20W/30W/40W and 3000K/3500K/4000K flexibility
  • Smooth, low-glare illumination through an opal polycarbonate flat lens with wide beam distribution

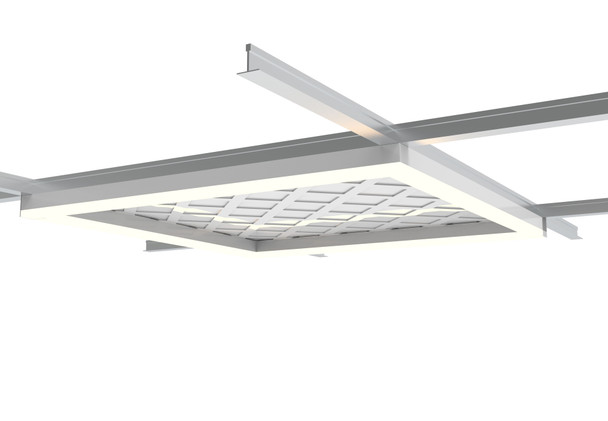

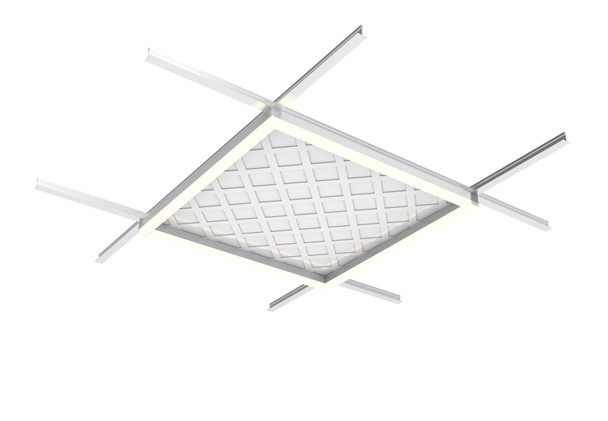

  • Supports multiple mounting styles including direct T-grid, surface, suspended, and recessed applications
  • 0-10V dimming capability for better lighting control and energy optimization
  • Long 50,000-hour rated life backed by a 5-year warranty for reduced maintenance costs
  • UL Listed and IP54 construction for reliable operation in demanding indoor commercial environments

Specifications

  • Input voltage: 120-277VAC, 50/60Hz
  • Power options: 20W / 30W / 40W
  • Lumen output: 2200lm / 3300lm / 4400lm
  • Efficacy: 110 lm/W
  • Color temperatures: 3000K / 3500K / 4000K
  • CRI: ≥80
  • Power factor: >0.95
  • Total harmonic distortion: ≤20%
  • Beam angle: 104.8° (H) x 100.5° (V)
  • BUG rating: B1-U2-G1
  • Operating temperature: -13°F to 104°F
  • Fixture dimensions: 25" (L) x 25" (W) x 1 1/3" (D)
  • Housing: aluminum with matte white finish

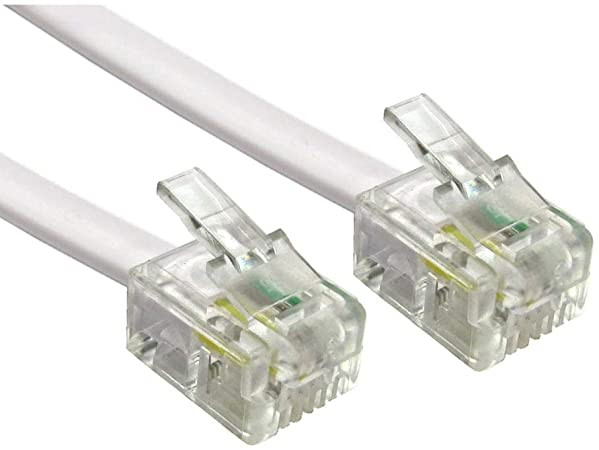

  • Includes 6-1/2" pre-installed cable with male RJ11 connector; external driver required

Common Uses

Ideal for offices, conference rooms, corridors, retail reception areas, education facilities, hotels, restaurants, libraries, and other indoor commercial spaces requiring modern linear illumination.
