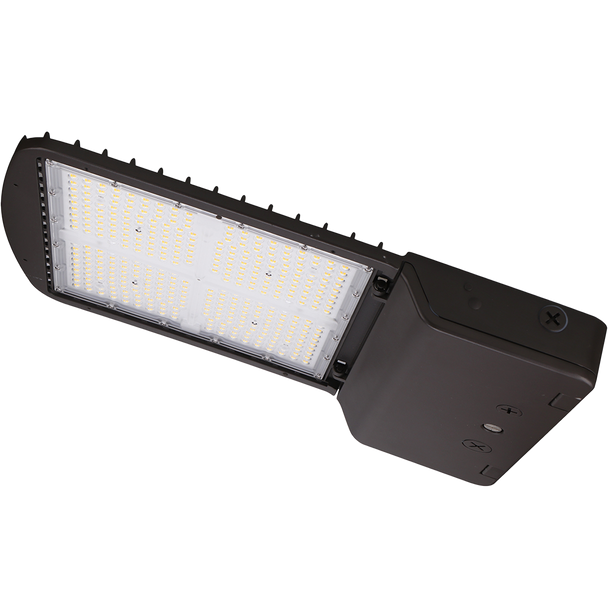

EiKO AAL1 Area Light, 300W, 4000K, Type III, 277-480V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 300W, 4000K, Type III, 277-480V

Now: $153.85
Reg: $307.70
Sale 50%
You save $ 153.85
  • SKU: E-AAL1-300-40T3-V
  • MPN: AAL1-300-40T3-V

Quick Overview

High-output EiKO AAL1 LED area light for parking lots and roadways, delivering 42,000 lumens at 140 lm/W with Type III distribution, 0-10V dimming, IP65/IK08 durability, and 277-480V operation.

UL Listed
DLC Premium
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a slim-profile architectural LED area light designed for demanding outdoor site and roadway illumination. Built for performance and flexibility, it combines high efficacy, robust environmental protection, and controls-ready functionality for modern lighting projects. In EiKO’s outdoor lineup, the AAL1 stands out as a versatile solution for both retrofit and new construction applications.

Key Features and Benefits

  • Delivers powerful illumination up to 42,000 lumens for large outdoor coverage.
  • Controls-ready design with a twist-lock receptacle simplifies future sensor and networked control upgrades.
  • Rugged outdoor construction with IP65 ingress protection and IK08 impact resistance for long-term reliability.
  • High-performance optical system with Type III distribution for effective roadway and perimeter lighting.
  • DLC Premium listed to support utility rebate opportunities and energy-saving goals.
  • Backed by a 5-year limited warranty for added project confidence.

Specifications

  • Lumen Output: 42000
  • Wattage: 300W
  • Voltage: 277-480V
  • Color Temperature: 4000K
  • CRI: 80
  • Dimming Type: 0-10V
  • Efficacy (lm/W): 140
  • Rated Life (70 Hours): 100000
  • Power Factor: 0.9
  • THD: 20
  • Distribution Type: Type III
  • Max Ambient Temperature: 50°C
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking lots, auto dealerships, roadways, campuses, urban developments, airports, building facades, security lighting zones, signage areas, and entryways.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
