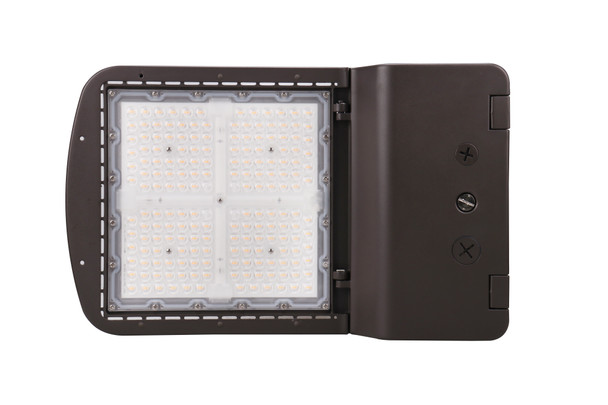

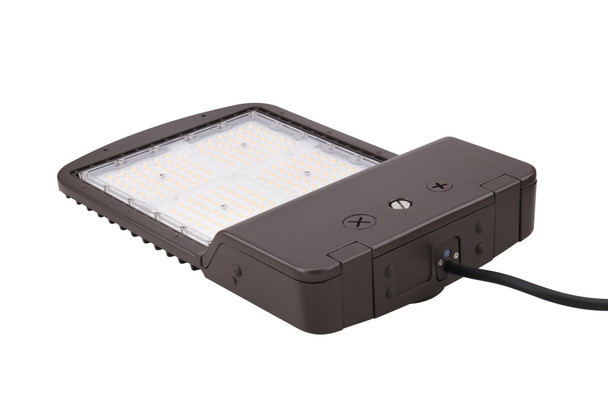

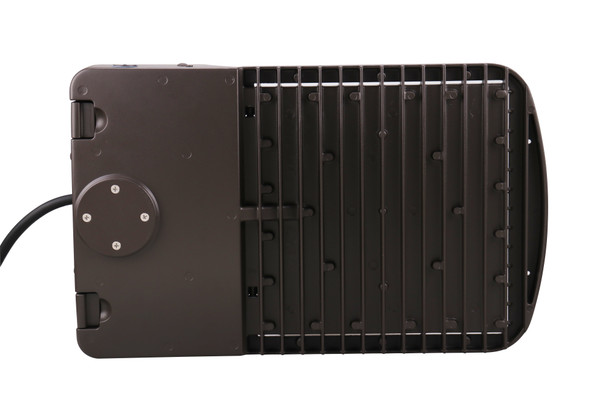

EiKO AAL1 Area Light, 150W, 5000K, Type V, 277-480V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 150W, 5000K, Type V, 277-480V

Now: $84.62
Reg: $130.70
Sale 35%
You save $ 46.08
  • SKU: E-AAL1-150-50T5-V
  • MPN: AAL1-150-50T5-V

Quick Overview

150W architectural LED area light with 21,000 lumens, 5000K CCT, Type V distribution, and 277-480V input. IP65/IK08 rated with 0-10V dimming for parking lots, roadways, campuses, and security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a slim-profile architectural area light designed for demanding outdoor site and roadway illumination. Built for performance and flexibility, it combines high efficacy, robust environmental protection, and controls-ready functionality for modern lighting projects.

Key Features and Benefits

  • Delivers strong site illumination with high efficacy up to 140 lm/W to reduce energy and operating costs
  • Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades
  • Durable outdoor construction with IP65 ingress protection, IK08 impact rating, and 3G vibration rating
  • DLC Premium qualified for utility rebate potential and premium performance standards
  • Certified for broad project acceptance: UL Listed, RoHS compliant, and FCC compliant
  • Backed by a 5-year limited warranty for long-term reliability

Specifications

  • Lumen Output: 21000
  • Wattage: 150W
  • Voltage: 277-480V
  • Color Temperature: 5000K
  • CRI: 80
  • Dimming Type: 0-10V (dim-to-off)
  • Distribution Type: Type V
  • Power Factor: 0.9
  • THD: 20
  • Rated Life (L70): 100000 hours
  • Max Ambient Temperature: 50°C
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate
  • Finish / Color: Bronze
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking areas, automotive dealerships, roadways, campuses, streetscapes, airports, entryways, building facades, signage, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
