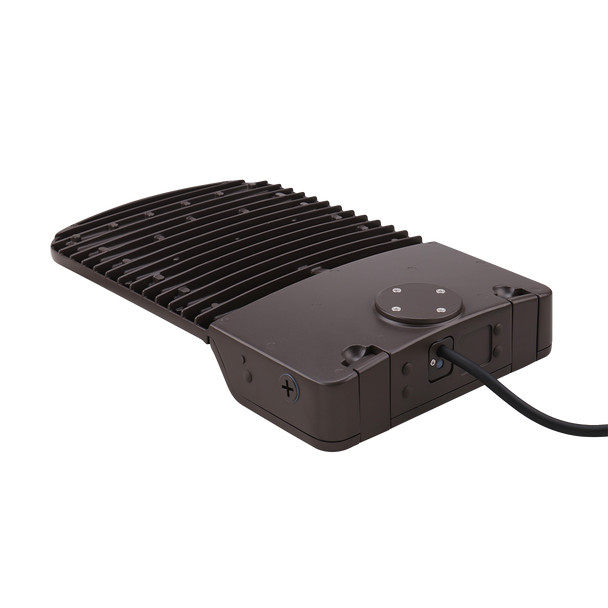

EiKO AAL1 Area Light, 150W, 4000K, Type V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 150W, 4000K, Type V

Now: $84.62
Reg: $130.70
Sale 35%
You save $ 46.08
  • SKU: E-AAL1-150-40T5
  • MPN: AAL1-150-40T5

Quick Overview

Architectural LED area light for parking lots, roadways, and campuses. This 150W fixture delivers 21,000 lumens at 140 lm/W with 4000K CCT, Type V distribution, 0-10V dimming, IP65/IK08 protection, and DLC Premium qualification.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 Series is a high-performance architectural area light designed for demanding outdoor applications where efficiency, durability, and control readiness are essential. Positioned as a versatile site-lighting solution in EiKO’s lineup, it combines robust construction with flexible optical and control options for modern projects.

Key Features and Benefits

  • Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades.
  • DLC Premium qualified performance helps maximize utility rebates and long-term energy savings.
  • Outdoor-tough build with IP65 ingress protection, IK08 impact rating, and 3G vibration rating for reliable operation.
  • 0-10V dim-to-off capability supports advanced lighting control strategies and reduced operating costs.
  • 5-year limited warranty provides added confidence for commercial and municipal installations.

Specifications

  • Lumen Output: 21000
  • Wattage: 150W
  • Voltage: 120-277V, 277-480V
  • Color Temperature: 4000K
  • CRI: 80+
  • Distribution Type: Type V
  • Efficacy: 140 lm/W
  • Rated Life (L70): 100000 hours
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40b0C to 50b0C
  • Dimming: 0-10V, dim-to-off
  • Surge Protection: 10kV standard (20kV optional)
  • Housing: Bronze powder-coated die-cast aluminum
  • Lens: Impact and UV-resistant polycarbonate

Common Uses

Ideal for parking areas, roadways, campuses, airports, automotive dealerships, streetscapes, building facades, entryways, signage, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
