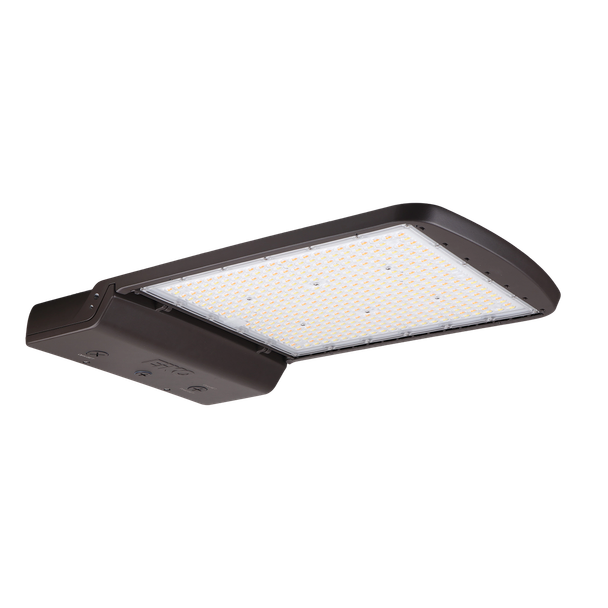

EiKO AAL2 LED Area Light, 300/240/180W, 277-480V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL2 LED Area Light, 300/240/180W, 277-480V

$369.15
  • SKU: E-AAL2-PS300-OS-8FCCT-VDIM
  • MPN: AAL2-PS300-OS-8FCCT-VDIM

Quick Overview

Field-adjustable LED area light for parking lots, roadways and campuses, with selectable 300/240/180W power, 5000K CCT, Type III distribution and 277-480V input.

UL Listed
DLC Premium
WET RATED
DAMP RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL2 LED Area Light is a flexible outdoor fixture designed for demanding commercial lighting projects. PowerSET, ColorSET and OpticSET let installers tune output, color temperature and distribution on site, making the AAL2 series a versatile choice for area and roadway lighting.

Key Features and Benefits

  • Field-selectable power, CCT and Type III, Type IV or Type V optics help adapt lighting to site requirements.
  • Die-cast aluminum construction supports heat management and durable outdoor performance.
  • Controls-ready design, 0-10V dimming and built-in 10kV surge protection support energy management and reliability.
  • UL Listed and cUL Listed, with DLC Premium and RoHS compliance.
  • Backed by a 5-year limited warranty.
  • Suitable for wet and damp locations, with IP65 protection.

Specifications

  • Power settings: 300W, 240W or 180W
  • Lumen output: 43,500 lm, 35,600 lm or 30,200 lm
  • Input voltage: 277-480V
  • Color temperature: 3000K, 4000K or 5000K
  • Light distribution: Type III, Type IV or Type V
  • CRI: 80+
  • Dimming: 0-10V
  • Frequency: 50/60 Hz
  • Power factor: >0.9
  • THD: <20%
  • Rated life: L70 up to 100,000 hours at 25°C
  • Surge protection: Built-in 10kV
  • Operating temperature: -40°C to 50°C
  • Housing: Die-cast aluminum
  • Finish: Bronze
  • Fixture dimensions: 23.08" x 14.17" x 2.93"
  • Fixture weight: 12.17 lb

Common Uses

Ideal for parking lots, automotive dealerships, roadways, area security lighting, entryways, campuses, streetscapes, airports, building facades and retail plazas.
