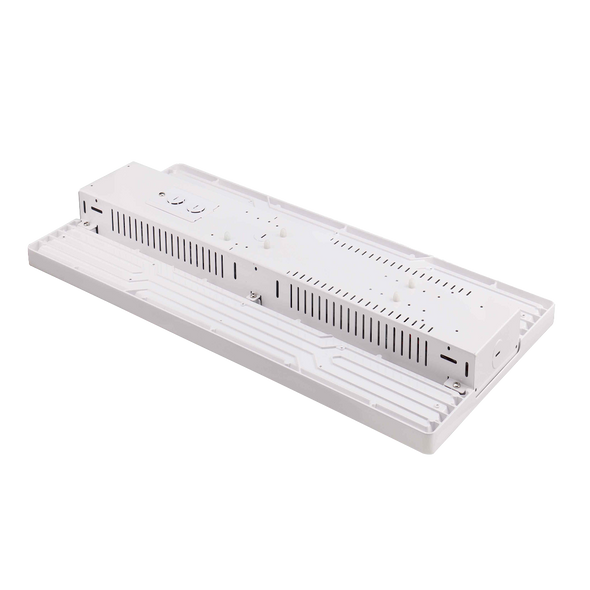

EiKO LH1 Linear High Bay, PowerSet 240/220/200/180W, FieldCCeT 4000K/5000K, 120-277V

By Eiko Global
EiKO LH1 Linear High Bay, PowerSet 240/220/200/180W, FieldCCeT 4000K/5000K, 120-277V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO LH1 Linear High Bay, PowerSet 240/220/200/180W, FieldCCeT 4000K/5000K, 120-277V

$199.90
  • SKU: E-LH1-PS240-FCCT-U
  • MPN: LH1-PS240-FCCT-U

Quick Overview

EiKO LH1 linear high bay with selectable 240/220/200/180W and 4000K/5000K CCT, delivering 36,000-27,000 lm at 150 lm/W. Ideal for warehouses, retail, and industrial spaces with 0-10V dimming and controls-ready sensor receptacle.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO LH1 Linear High Bay is a high-performance fixture series designed for demanding commercial and industrial interiors. This PowerSet and FieldCCeT configuration gives installers flexible output and color tuning in one SKU, helping simplify stocking and project changes. As part of EiKO’s controls-ready high bay lineup, it supports efficient upgrades for large facilities.

Key Features and Benefits

  • PowerSet output selection (240/220/200/180W) enables on-site light level tuning for different ceiling heights and tasks
  • Field-selectable 4000K or 5000K CCT supports both neutral and daylight-style environments
  • Controls-ready screw-in receptacle allows fast sensor or networked control integration without extra wiring
  • Frosted polycarbonate lens helps reduce glare while maintaining strong illumination
  • Durable die-cast aluminum housing with molded heatsink fins improves thermal performance and longevity
  • DLC Premium qualified with a 5-year limited warranty for energy rebate potential and long-term confidence

Specifications

  • Lumen package: 36,000/33,000/30,000/27,000 lm (based on selected wattage)
  • Efficacy: 150 lm/W
  • Input voltage: 120-277V
  • CCT options: 4000K/5000K (field selectable)
  • CRI: >80
  • Beam angle: 90°
  • Dimming: 0-10V dim-to-off
  • Estimated life: L70 100,000 hours
  • Power factor: >0.9; THD: <20%
  • Surge protection: up to 6kV
  • Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)
  • Fixture includes V-hook and aircraft cables; suggested mounting heights up to 35'
  • Dimensions (90-240W housing): 23" L x 11" W x 2-3/16" H; weight: 6.6 lbs

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, grocery stores, big box retail, service repair centers, indoor recreational facilities, and cold storage applications.

RESOURCES AND DOWNLOADS

EiKO LH1 Linear High Bay Spec Sheet
