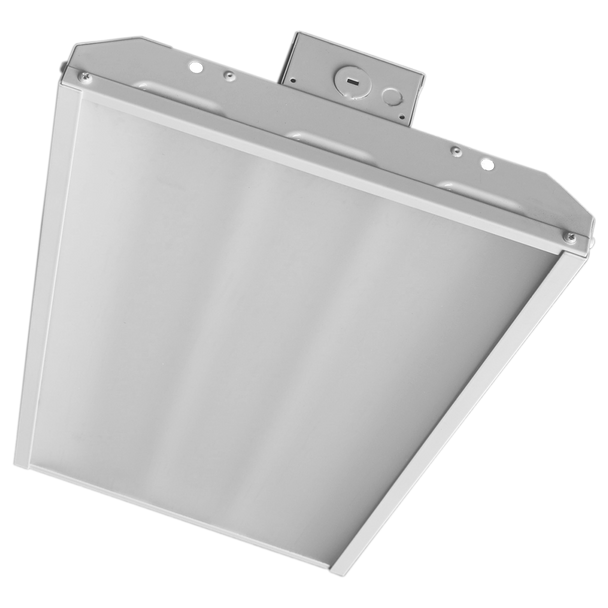

EiKO LLH Linear High Bay, 2', 162W, 4000K, 120-277V, Frosted Lens

By Eiko Global
EiKO LLH Linear High Bay, 2', 162W, 4000K, 120-277V, Frosted Lens

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO LLH Linear High Bay, 2', 162W, 4000K, 120-277V, Frosted Lens

$63.75
  • SKU: E-LLH-2DX-40K-U
  • MPN: LLH-2DX-40K-U

Quick Overview

EiKO LLH 2' linear LED high bay delivers 21,850 lumens at 135 lm/W with 0-10V dimming, 4000K CCT, and 120-277V input for warehouses, retail, gyms, and industrial facilities.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO LLH series is a high-performance linear high bay family designed to replace fluorescent and HID high bay systems in demanding commercial and industrial spaces. This LLH-2DX-40K-U configuration combines strong output, efficient operation, and a classic single-lens appearance for broad facility upgrades. It is a core option in EiKO’s high bay lineup for projects that need reliable light quality, controls compatibility, and long service life.

Key Features and Benefits

  • Delivers high efficacy up to 135 lm/W to help reduce energy use versus legacy fluorescent and HID fixtures
  • Integrated 0-10V dimming with dim-to-off capability for improved energy management and control flexibility
  • Classic frosted single-lens design helps reduce glare while maintaining even light distribution
  • Heavy-gauge steel housing with welded frame construction improves durability in commercial and industrial environments
  • Built-in 2.5kV surge protection supports dependable operation in electrically noisy facilities
  • UL Listed, RoHS compliant, and DLC Premium qualified for rebate-friendly, code-conscious projects
  • Backed by a 5-year limited warranty for long-term peace of mind

Specifications

  • Wattage: 162W
  • Light output: 21,850 lumens
  • Efficacy: 135 lm/W
  • CCT: 4000K
  • CRI: >80
  • Input voltage: 120-277V
  • Dimming: 0-10V, down to <10% with dim-to-off
  • Power factor: >0.9; THD: <20%
  • Auxiliary power: 12VDC, 100mA
  • Operating temperature: -22°F to 122°F (-30°C to 50°C)
  • Estimated lifetime: L80 >54,000 hours at 45°C; L90 >36,000 hours at 45°C
  • Fixture size: 2' form factor (23.8" x 12.6" x 3.65")
  • Mounting hardware included: 10' Y-toggle aircraft cable kit

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, grocery stores, gymnasiums, indoor recreational facilities, cold storage areas, big box retail, and service repair centers.

RESOURCES AND DOWNLOADS

EiKO LLH Linear High Bay Spec Sheet
