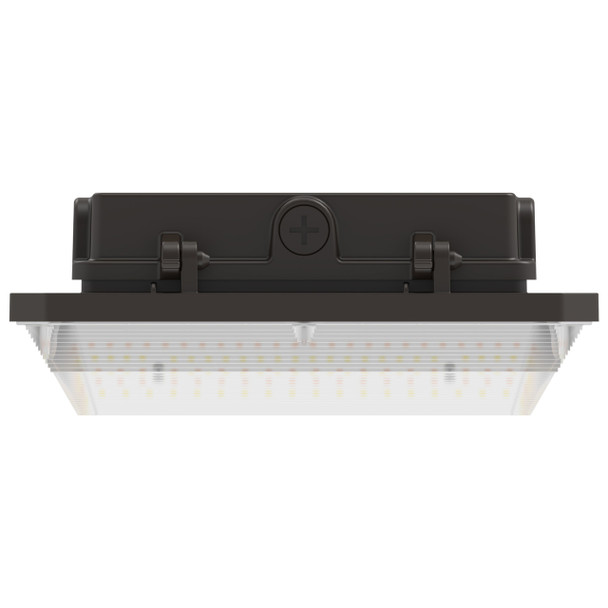

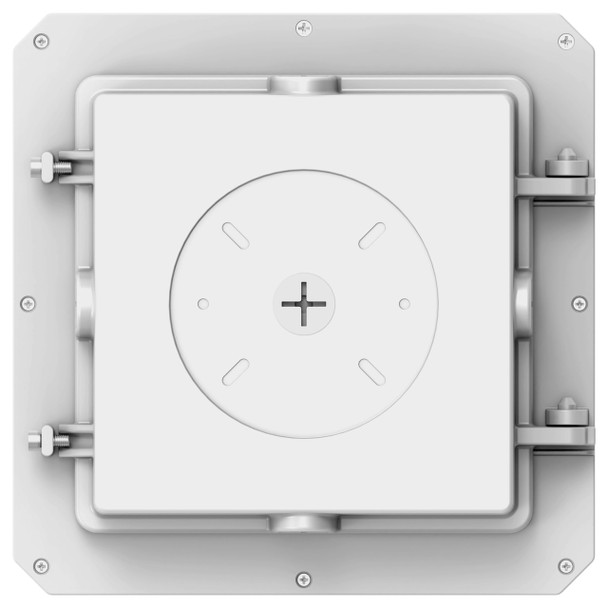

ESL Square Canopy, 30W-45W-60W, 3000K-4000K-5000K

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Square Canopy, 30W-45W-60W, 3000K-4000K-5000K

$124.95
  • SKU: ESL-ESL-CP-3060W-53050
  • MPN: ESL-CP-3060W-53050

Quick Overview

5th-generation square LED canopy light with selectable 30W/45W/60W and 3000K/4000K/5000K settings, up to 9,000 lumens, 120-277V input, 0-10V dimming, and IP65 protection for parking garages, canopies, and covered walkways.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Square Canopy Series delivers flexible, high-performance illumination for commercial exterior ceiling applications. This 5th-generation fixture combines field-selectable wattage and CCT in one compact housing, making it a practical choice across retrofit and new construction projects. As a core ESL canopy offering, it is designed to simplify inventory while maintaining dependable light quality and efficiency.

Key Features and Benefits

  • Selectable output lets you tune performance on site with 30W, 45W, or 60W settings.
  • 3CCT adjustability (3000K/4000K/5000K) supports warm to crisp white lighting needs.
  • 0-10V dim-to-off control enables energy savings and compatibility with modern lighting controls.
  • IP65-rated construction helps protect against dust and water in demanding outdoor environments.
  • DLC Premium listed and UL certified for trusted commercial-grade compliance.
  • Backed by a 5-year warranty for long-term reliability.

Specifications

  • Lumen Output: Up to 9000
  • Efficacy: Up to 150 lm/W
  • Input Voltage: 120-277V
  • Frequency: 50/60Hz
  • CRI: >80
  • Beam Angle: 190°
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40°F to 113°F (-40°C to 45°C)
  • Rated Life (L70): 170000 hours (TM-21 calculated)
  • Dimensions: 9.57" x 9.57" x 3.62"
  • Weight: 4.41 lbs
  • Default Setting: 60W, 4000K
  • Surge Protection: 2.5kV

Common Uses

Ideal for parking garages, gas station canopies, covered drive lanes, entry canopies, and other commercial soffit or overhang installations requiring durable, efficient, and configurable lighting.

RESOURCES AND DOWNLOADS

ESL Square Canopy Spec Sheet
