ESL Vision Wall Pack, 40W-60W-80W, 3000K-4000K-5000K, Bronze

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

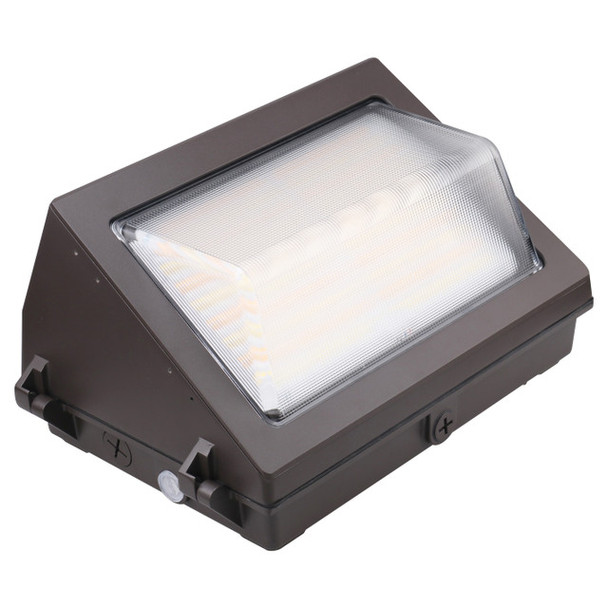

ESL Vision Wall Pack, 40W-60W-80W, 3000K-4000K-5000K, Bronze

$159.55
  • SKU: ESL-ESL-WP-4080W-73050-BZ
  • MPN: ESL-WP-4080W-73050-BZ

Quick Overview

Selectable LED wall pack with 40W/60W/80W power, 3000K/4000K/5000K CCT, and 60°/90°/110° beam options. Delivers up to 11,600 lumens at up to 145 lm/W with 0-10V dimming, built-in photocell, and IP65 protection.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Wall Pack Series is a versatile exterior lighting solution designed for commercial and industrial building perimeters. This 7th generation model combines selectable wattage, CCT, and beam distribution in one fixture, making it a flexible choice across retrofit and new construction projects. It is a core lineup option for dependable security and area illumination with strong efficiency and long service life.

Key Features and Benefits

  • Three power levels in one fixture (40W/60W/80W) simplify inventory and on-site configuration.
  • Field-selectable 3000K, 4000K, or 5000K output supports warm to daylight exterior lighting needs.
  • Selectable 60°, 90°, and 110° beam patterns help tailor coverage and reduce overlighting.
  • Built-in on/off photocell enables automatic dusk-to-dawn operation for energy savings.
  • 0-10V dim-to-off control supports advanced lighting control strategies.
  • Rated IP65 for outdoor durability, with DLC Premium and UL certifications plus a 5-year warranty.

Specifications

  • Lumen Output: up to 11,600
  • Efficacy: up to 145 lm/W
  • Input Voltage: 120-277VAC
  • Input Frequency: 50/60Hz
  • CRI: >80
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
  • Rated Life (L70): 145,000 hours (TM-21 calculated)
  • Dimensions: 14.36" x 9.30" x 7.45"
  • Weight: 8.2 lbs
  • Surge Protection: 6kV driver

Common Uses

Ideal for building exteriors, loading docks, walkways, service entrances, parking perimeters, schools, warehouses, and general security lighting in wet outdoor environments.

RESOURCES AND DOWNLOADS

ESL Vision Wall Pack Spec Sheet
