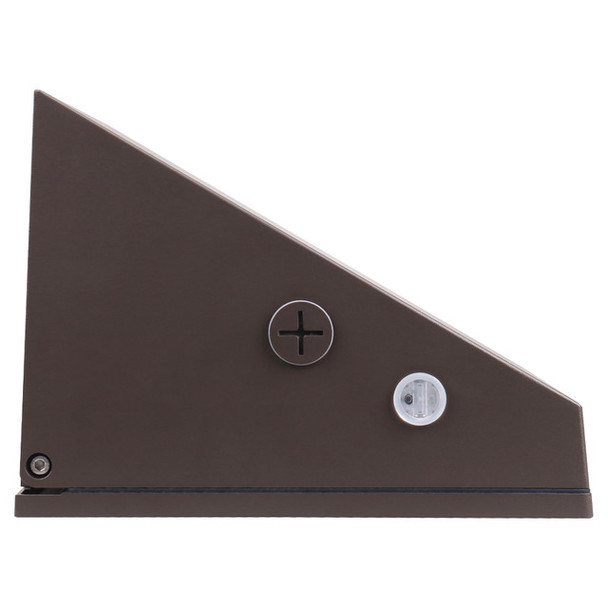

ESL Vision Full Cutoff Wall Pack, 80W/100W/120W, 3000K/4000K/5000K, Bronze, Emergency Battery Backup

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Full Cutoff Wall Pack, 80W/100W/120W, 3000K/4000K/5000K, Bronze, Emergency Battery Backup

$362.90
  • SKU: ESL-ESL-FCWP-80120W-33050-BZ-EM
  • MPN: ESL-FCWP-80120W-33050-BZ-EM

Quick Overview

Selectable full cut-off LED wall pack with 80W/100W/120W and 3000K/4000K/5000K options, delivering up to 16,965 lumens at 141 lm/W. Includes built-in photocell, 0-10V dimming, and EM9 emergency backup for exterior security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Full Cutoff Wall Pack Series is a high-performance exterior luminaire designed for dependable perimeter and security lighting. This 3rd-generation configuration combines selectable wattage and CCT flexibility with strong optical control, making it a key solution for commercial building exteriors.

Key Features and Benefits

  • Field-adjustable output with 80W, 100W, or 120W settings to match site lighting needs
  • Selectable 3000K/4000K/5000K color temperatures for warm-to-daylight visual comfort
  • Integrated on/off photocell for automatic dusk-to-dawn operation and energy savings
  • 0-10V dim-to-off capability for advanced lighting controls and reduced operating costs
  • EM9 emergency battery option provides 9W output for a minimum of 90 minutes during outages
  • Backed by a 5-year warranty and listed for DLC Premium and UL compliance

Specifications

  • Lumen Output: up to 16,965
  • Efficacy: up to 141 lm/W
  • Input Voltage: 120-277VAC
  • Frequency: 50/60Hz
  • CRI: >80
  • THD: <20%
  • Power Factor: >0.9
  • Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
  • Distribution: Type II
  • Surge Protection: 6kV driver
  • Dimensions: 13.28" x 9.36" x 8.11"
  • Weight: 9.26 lbs
  • Rated Life (L70): 165,000 hours (TM-21 calculated)

Common Uses

Ideal for commercial facades, loading areas, walkways, service entrances, schools, warehouses, and general perimeter security applications requiring controlled forward throw and reduced uplight.
