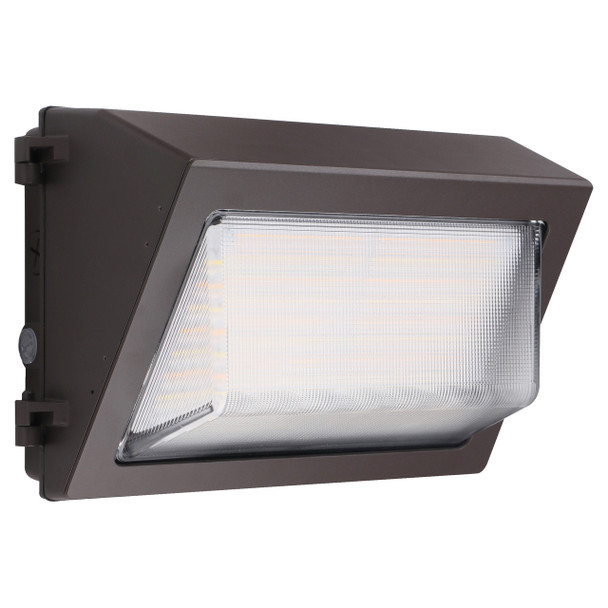

ESL Vision Wall Pack, 80W|100W|120W, 3000K|4000K|5000K, Bronze, 60°|90°|110° Beam Angle, 120-277V

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Wall Pack, 80W|100W|120W, 3000K|4000K|5000K, Bronze, 60°|90°|110° Beam Angle, 120-277V

$184.60
  • SKU: ESL-ESL-WP-80120W-73050-BZ
  • MPN: ESL-WP-80120W-73050-BZ

Quick Overview

Selectable LED wall pack with 80W/100W/120W power, 3000K/4000K/5000K CCT, and 60°/90°/110° beam options. Delivers up to 17,400 lumens at up to 145 lm/W with 0-10V dimming, built-in photocell, and IP65 outdoor rating.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Wall Pack Series delivers flexible, high-output exterior lighting for commercial building perimeters and security applications. This 7th generation model combines selectable wattage, CCT, and beam spread in one fixture to simplify stocking and field setup. It is a core outdoor solution in ESL Vision’s lineup for reliable, efficient wall-mounted illumination.

Key Features and Benefits

  • Three power settings in one fixture (80W/100W/120W) to match light levels and reduce SKU complexity
  • Selectable 3000K/4000K/5000K color temperatures for warm to crisp white site lighting
  • Adjustable beam distributions (60°/90°/110°) for targeted or wider coverage
  • Built-in on/off photocell for automatic dusk-to-dawn operation
  • 0-10V dim-to-off control supports energy-saving lighting strategies
  • DLC Premium and UL Certified design with a 5-year warranty for dependable commercial use

Specifications

  • Lumen Output: up to 17,400
  • Efficacy: up to 145 lm/W
  • Input Voltage: 120-277VAC
  • Frequency: 50/60Hz
  • CRI: >80
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Surge Protection: 6kV driver
  • Rated Life (L70): 145,000 hours (TM-21)
  • Dimensions: 14.36" x 9.30" x 7.45"
  • Weight: 8.2 lbs
  • Default Setting: 120W, 5000K, 110° beam angle

Common Uses

Ideal for exterior walls, loading areas, walkways, service entrances, parking perimeters, schools, warehouses, and general commercial security lighting where durable, controllable outdoor illumination is required.

RESOURCES AND DOWNLOADS

ESL Vision Wall Pack Spec Sheet
