ESL Vision Wall Pack, 40W|60W|80W, 3000K|4000K|5000K, Bronze, Emergency Battery Backup

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

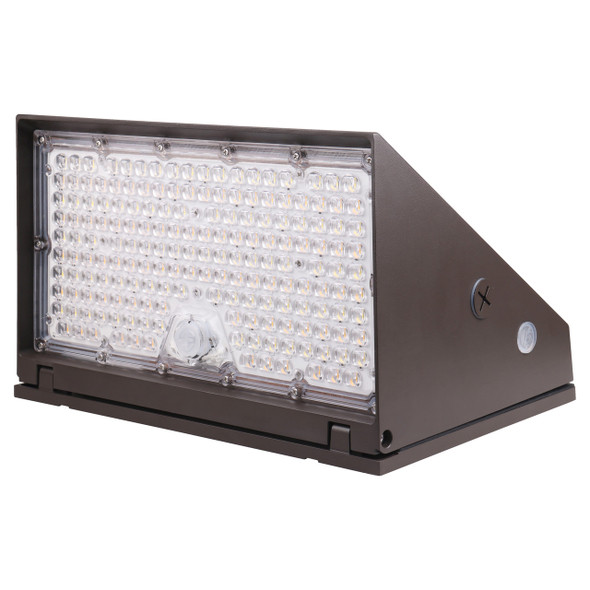

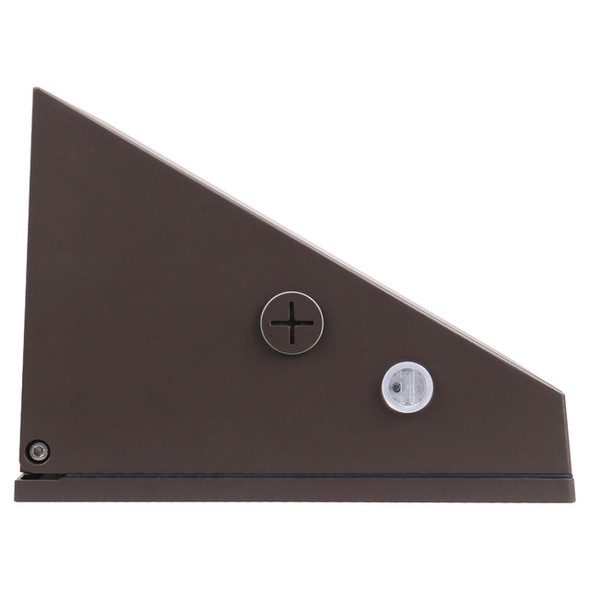

ESL Vision Wall Pack, 40W|60W|80W, 3000K|4000K|5000K, Bronze, Emergency Battery Backup

$350.90
  • SKU: ESL-ESL-WP-4080W-73050-BZ-EM
  • MPN: ESL-WP-4080W-73050-BZ-EM

Quick Overview

Selectable LED wall pack with 40W/60W/80W output, 3000K/4000K/5000K CCT, and adjustable 60°/90°/110° beam angles. Delivers up to 11,600 lumens at 145 lm/W with 0-10V dimming, built-in photocell, and EM backup option.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Wall Pack Series is a versatile exterior lighting solution designed for commercial and industrial perimeter illumination. This 7th generation model combines selectable wattage, selectable CCT, and selectable beam spread in one fixture to simplify stocking and field setup. It is a core lineup option for projects needing dependable performance, controls flexibility, and long service life.

Key Features and Benefits

  • Three power levels in one fixture (40W/60W/80W) for easier on-site light level tuning
  • Selectable 3000K, 4000K, or 5000K color temperature to match site visibility and comfort goals
  • Adjustable beam distributions (60°/90°/110°) to optimize throw and coverage
  • Integrated on/off photocell for automatic dusk-to-dawn operation
  • 0-10V dim-to-off capability supports advanced energy-saving controls
  • DLC Premium and UL Certified design with a 5-year warranty for project confidence

Specifications

  • Lumen Output: 11600
  • Efficacy (lm/W): 145
  • Voltage: 120-277V
  • Frequency (Hz): 50/60
  • CRI: 80+
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Surge Protection: 6kV driver
  • Rated Life (L70): 145000 hours
  • Dimensions: 14.36" x 9.30" x 7.45"
  • Weight: 8.2 lbs
  • Default Settings: 80W, 5000K, 110° beam angle

Common Uses

Ideal for building exteriors, loading areas, walkways, service entrances, parking perimeters, and general security lighting in commercial, municipal, and light industrial environments.

RESOURCES AND DOWNLOADS

ESL Vision Wall Pack Spec Sheet
