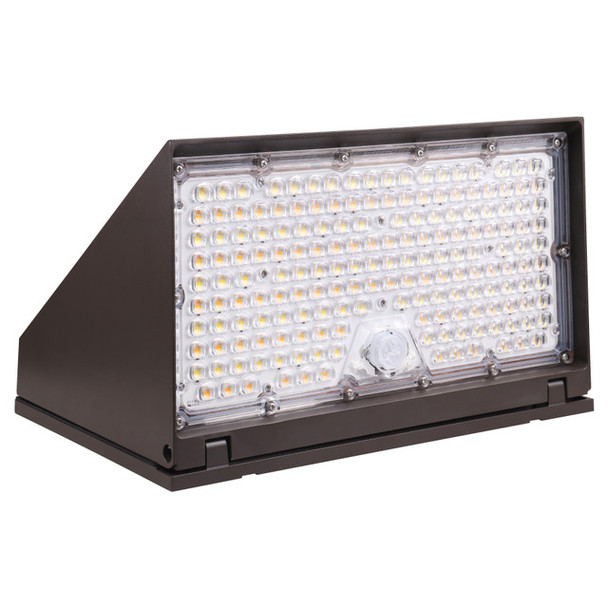

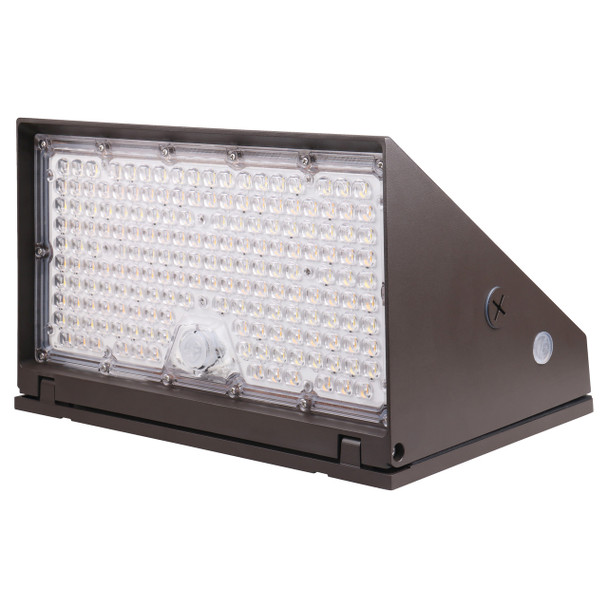

ESL Vision Full Cutoff Wall Pack, 20W/40W/60W, 3000K/4000K/5000K, Bronze, Emergency Battery Backup

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Full Cutoff Wall Pack, 20W/40W/60W, 3000K/4000K/5000K, Bronze, Emergency Battery Backup

$322.85
  • SKU: ESL-ESL-FCWP-2060W-33050-BZ-EM
  • MPN: ESL-FCWP-2060W-33050-BZ-EM

Quick Overview

Selectable full cutoff LED wall pack with 20W/40W/60W and 3000K/4000K/5000K options, delivering up to 8,560 lumens at up to 143 lm/W. Includes built-in photocell, 0-10V dimming, and EM9 emergency backup for outdoor security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Full Cutoff Wall Pack Series is a versatile outdoor lighting solution designed for perimeter, security, and building-mounted applications. This ESL-FCWP-2060W-33050-BZ-EM configuration combines field flexibility with selectable wattage and CCT, plus integrated emergency operation for added safety. As part of ESL Vision’s commercial wall pack lineup, it delivers dependable performance, energy savings, and controlled light distribution.

Key Features and Benefits

  • Selectable output lets you tune light levels with 20W, 40W, or 60W settings in one fixture.
  • Three CCT options (3000K/4000K/5000K) support warm to cool site lighting needs.
  • Built-in on/off photocell enables automatic dusk-to-dawn operation.
  • Factory-installed EM9 emergency battery provides 9W output for a minimum of 90 minutes during outages.
  • 0-10V dim-to-off control supports advanced energy management strategies.
  • DLC Premium and UL Certified design with a 5-year warranty for confidence in long-term use.

Specifications

  • Lumen Output: up to 8560
  • Efficacy: up to 143 lm/W
  • Input Voltage: 120-277V
  • Frequency: 50/60Hz
  • CRI: >80
  • THD: <20%
  • Power Factor: >0.9
  • Distribution: Type II
  • Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
  • Rated Life (L70): 165000 hours
  • Dimensions: 10.65" x 9.36" x 6.85"
  • Weight: 7.5 lbs

Common Uses

Ideal for commercial building exteriors, walkways, loading areas, parking perimeters, schools, and industrial facilities where controlled cutoff distribution, selectable performance, and emergency egress illumination are required.
