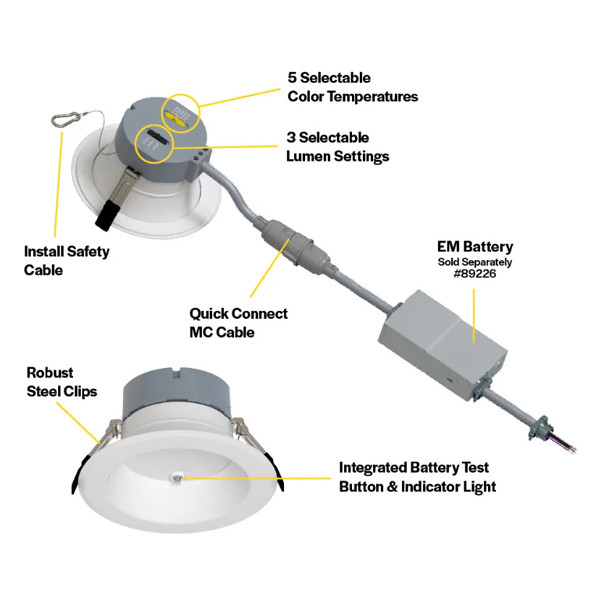

Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V

By Halco Lighting Technologies
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V
Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Halco Retrofit Commercial Downlight, 6", Emergency Battery Ready, Lumen Selectable, Color Selectable, White Reflector, White Flange, Dual Dimming, 120-277V

$80.45
  • SKU: HLT-CDLEM-6-LS-CS-WH-DDV
  • MPN: CDLEM-6-LS-CS-WH-DDV

Quick Overview

6" retrofit commercial LED downlight with emergency battery readiness, selectable 1000/1800/2500 lumens, 2700K-5000K CCT, 0-10V or TRIAC/ELV dimming, 120-277V input, 90+ CRI, and wet location/IP65 rating.

ETL Listed
Energy Star
Title 24 Compliant
WET RATED
IC RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Halco CDLEM 6" Retrofit Commercial Downlight is a versatile, field-adjustable solution designed to modernize commercial interiors with minimal installation effort. As part of Halco’s CDL family, this emergency battery-ready model combines selectable output, broad CCT flexibility, and dual-protocol dimming for dependable performance across retrofit projects.

Key Features and Benefits

  • Field-selectable lumen packages and five CCT options allow one fixture to cover multiple design requirements.
  • Dual dimming compatibility supports both 0-10V controls and TRIAC/ELV phase-cut systems for easier upgrades.
  • Emergency battery-ready configuration supports life-safety lighting needs with a clean, integrated appearance.
  • Wet location and IP65 construction enable use in demanding indoor or covered outdoor environments.
  • Backed by a 5-year limited warranty and certified for ETL, Energy Star, FCC, RoHS, and Title 24 compliance.

Specifications

  • Lumen Output: 1000/1800/2500
  • Wattage: 11W/18W/22W (CDLEM nominal selectable)
  • Voltage: 120-277V, 50/60Hz
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K
  • CRI: 90+
  • Beam Angle: 80° ± 10°
  • Power Factor: 0.9
  • Rated Life (L70): 50000 hours
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C)
  • Weight: 1.5 lbs

Common Uses

Ideal for office parks, commercial buildings, maintenance facilities, schools, universities, and big-box retail spaces where flexible light levels, code-friendly performance, and reliable retrofit installation are required.

RESOURCES AND DOWNLOADS

Halco Retrofit Commercial Downlight Spec Sheet
