Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 4200lm, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

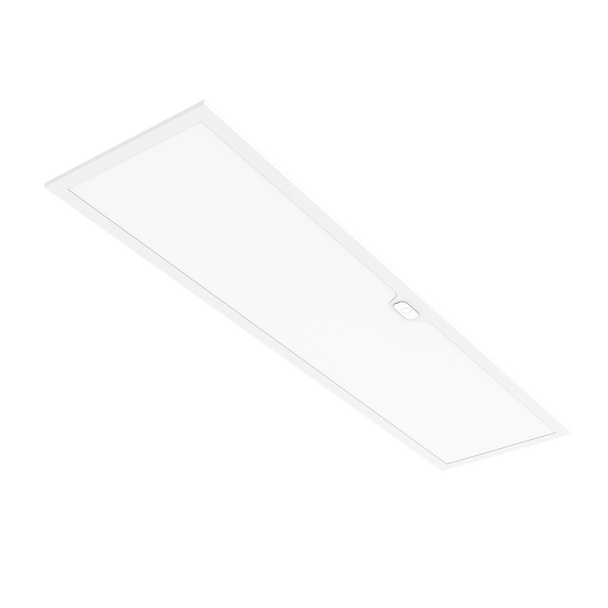

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 4200lm, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2

$70.80
  • SKU: ILP-VPAN14-42L-U-CCTS-G2
  • MPN: VPAN14-42L-U-CCTS-G2

Quick Overview

1x4 back-lit LED flat panel with selectable CCT and lumen package, delivering up to 4420 lumens at 29W. Features 0-10V dimming, IC rating, damp-location suitability, and ETL listing for commercial interior ceiling applications.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series is a versatile back-lit flat panel family engineered for modern commercial interiors that need flexible output and dependable performance. This VPAN14-42L-U-CCTS-G2 configuration provides a 1x4 form factor with selectable white light and efficient, low-glare illumination for retrofit and new construction projects.

Key Features and Benefits

  • Selectable CCT technology supports five color temperatures to match changing space requirements.
  • Back-lit optical system with PMMA frosted lens and micro-optics delivers smooth, visually comfortable light.
  • High efficacy performance helps reduce energy costs while maintaining strong lumen output.
  • 0-10V dimming capability enables straightforward integration with common lighting controls.
  • ETL Listed for US and Canada, Title 24 compliant with sensor option, and backed by a 5-year warranty.
  • Type IC construction and damp-location suitability expand installation flexibility in commercial ceilings.

Specifications

  • Lumen Output: 4040|4296|4323|4420|4394
  • Wattage: 29W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80+
  • Power Factor: >0.90
  • Dimming: 0-10V (10%-100%)
  • Rated Life (L70): >100000 hours
  • Efficacy: up to 153.8 lm/W
  • Ambient Operating Range: -4°F to 104°F
  • Dimensions: 47.8" x 11.9" x 1.3"
  • Lens Material: PMMA frosted acrylic

Common Uses

Ideal for education facilities, healthcare spaces, offices, retail stores, grocery environments, food prep areas, storage rooms, and other indoor commercial applications requiring efficient, uniform recessed panel lighting.
