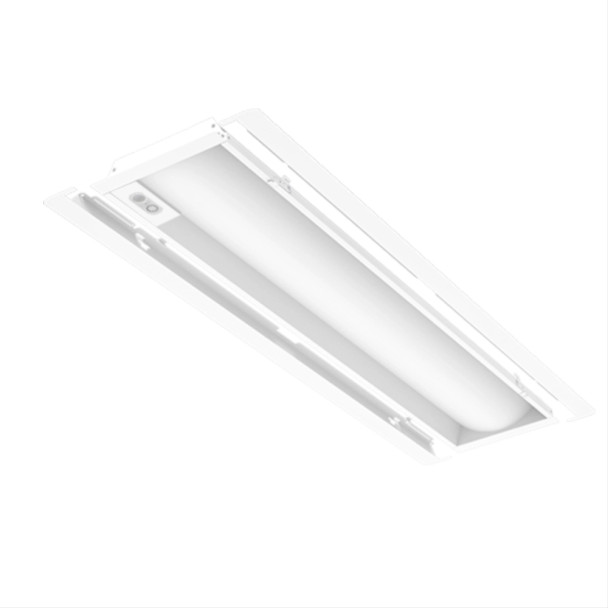

Industrial Lighting Products VTK Volumetric Troffer Kit, 1x4, 2000/2500/3000/4000lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

By Industrial Lighting Products
Industrial Lighting Products VTK Volumetric Troffer Kit, 1x4, 2000/2500/3000/4000lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VTK Volumetric Troffer Kit, 1x4, 2000/2500/3000/4000lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

$69.25
  • SKU: ILP-VTK14-20L/40L-U-CCTS-G2
  • MPN: VTK14-20L/40L-U-CCTS-G2

Quick Overview

1x4 volumetric troffer retrofit kit with selectable 2000-4000 lumens and 2700K-5000K CCT, 120-277V input, 0-10V dimming, and up to 160 lm/W for efficient commercial and institutional upgrades.

ETL Listed
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VTK14 Volumetric Troffer Kit is a Gen 2 retrofit solution designed to modernize existing 1x4 troffers with high-performance LED lighting. Built for commercial and institutional spaces, it combines field-selectable output and color temperature with strong efficacy to reduce energy and maintenance costs.

Key Features and Benefits

  • Field-selectable lumen packages (2000/2500/3000/4000) for flexible light levels in one SKU
  • Selectable CCT options from warm to daylight tones (2700K to 5000K) to match application needs
  • High efficacy performance up to 160 lm/W helps lower operating expenses
  • 0-10V dimming standard for smooth control from 10% to 100%
  • ETL Listed for US and Canadian safety standards, with damp-location suitability
  • Backed by a 5-year standard warranty with optional 10-year coverage

Specifications

  • Size: 1x4
  • Input Voltage: 120-277V
  • Wattage: 14W/17W/21W/28W
  • Lumen Output: 2037-4168 lm (depending on CCT and lumen setting)
  • CCT Options: 2700K/3000K/3500K/4000K/5000K
  • Power Factor: >0.90
  • Rated Life (L70): >100,000 hours
  • Ambient Operating Range: -4°F to 104°F
  • Housing Depth Compatibility: 3 1/8" minimum troffer depth
  • Construction: Post-painted steel housing with one-piece door frame and universal mounting brackets

Common Uses

Ideal for education buildings, commercial offices, healthcare facilities, retail spaces, and storage facilities where efficient, tunable retrofit lighting is needed in existing troffer housings.

RESOURCES AND DOWNLOADS

Industrial Lighting Products VTK Volumetric Troffer Kit Spec Sheet
