Industrial Lighting Products VTK Volumetric Troffer Kit, 1x4, 2500lm, 120-277V, Selectable CCT (2700K/3000K/3500K/4000K/5000K), Gen 2

By Industrial Lighting Products
Industrial Lighting Products VTK Volumetric Troffer Kit, 1x4, 2500lm, 120-277V, Selectable CCT (2700K/3000K/3500K/4000K/5000K), Gen 2

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

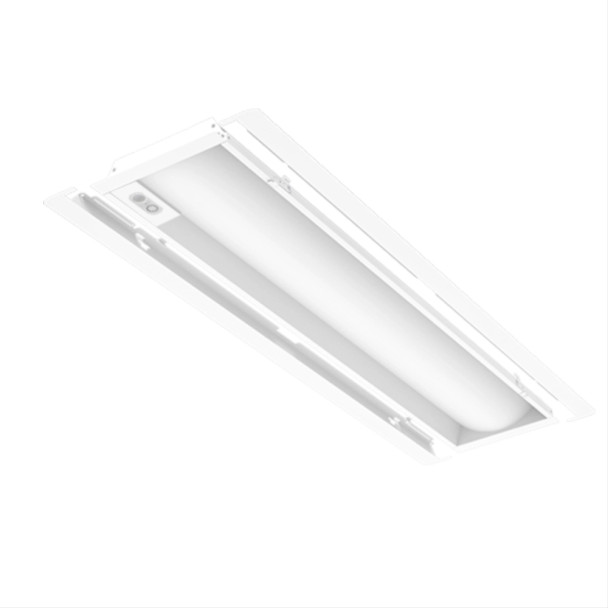

Industrial Lighting Products VTK Volumetric Troffer Kit, 1x4, 2500lm, 120-277V, Selectable CCT (2700K/3000K/3500K/4000K/5000K), Gen 2

$78.50
  • SKU: ILP-VTK14-25L-U-CCTS-G2
  • MPN: VTK14-25L-U-CCTS-G2

Quick Overview

1x4 LED volumetric troffer retrofit kit with 2,500 lm package, selectable 2700K-5000K CCT, 0-10V dimming, and 120-277V input. Ideal for offices, education, healthcare, retail, and storage applications.

ETL Listed
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VTK Gen 2 Volumetric Troffer Kit modernizes existing fluorescent troffers with efficient, selectable LED performance in a sleek one-piece retrofit design. As part of ILP’s retrofit lineup, it delivers flexible light output and color tuning to support varied commercial interior environments.

Key Features and Benefits

  • Field-selectable CCT options let you fine-tune visual comfort for different spaces and tasks.
  • High-efficacy LED platform helps reduce energy and maintenance costs versus legacy fluorescent systems.
  • One-piece steel retrofit body with universal mounting brackets simplifies installation in compatible troffers.
  • 0-10V dimming support enables smooth light level control from 10% to 100%.
  • ETL Listed for U.S. and Canada, damp-location suitable, with Title 24 compliance when paired with sensor options.
  • Backed by a standard 5-year warranty, with optional 10-year coverage available.

Specifications

  • Size / Series: VTK14, 1x4 volumetric troffer kit
  • Lumen Package: 2500 lm (25L)
  • Input Voltage: 120-277V
  • CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K
  • Wattage (25L system): 17W nominal
  • Efficacy (25L range): up to 158 lm/W
  • Power Factor: >0.90
  • Ambient Operating Range: -4°F to 104°F
  • Rated Life: L70 > 100,000 hours
  • Housing Depth Compatibility: 3 1/8" or greater existing troffers

Common Uses

Designed for retrofit projects in education buildings, commercial offices, healthcare facilities, retail spaces, and storage areas where efficient, tunable general illumination is needed.

RESOURCES AND DOWNLOADS

Industrial Lighting Products VTK Volumetric Troffer Kit Spec Sheet
