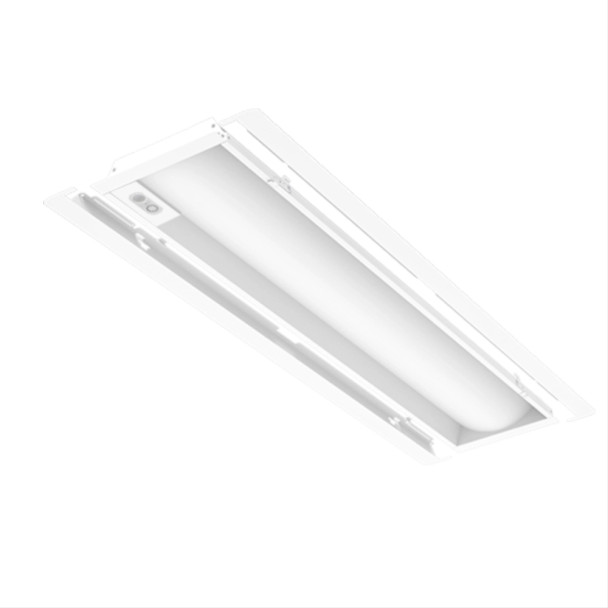

ILP VTK Volumetric Troffer Kit, 1x4, 4000lm, 28W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

By Industrial Lighting Products
ILP VTK Volumetric Troffer Kit, 1x4, 4000lm, 28W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP VTK Volumetric Troffer Kit, 1x4, 4000lm, 28W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

$78.50
  • SKU: ILP-VTK14-40L-U-CCTS-G2
  • MPN: VTK14-40L-U-CCTS-G2

Quick Overview

1x4 volumetric troffer retrofit kit with selectable CCT and lumen output, delivering up to 4000 lumens at 28W. Features 0-10V dimming, 120-277V input, and damp-location rating for commercial interior upgrades.

ETL Listed
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VTK Gen 2 Volumetric Troffer Kit is a high-performance retrofit solution designed to modernize existing troffer housings in commercial spaces. Built for efficiency, flexibility, and fast installation, this 1x4 kit combines selectable light output and color temperature to simplify project standardization across varied applications.

Key Features and Benefits

  • Field-selectable lumen packages and five CCT options allow one SKU to cover multiple design needs.
  • High-efficacy LED platform helps reduce energy and maintenance costs versus legacy fluorescent systems.
  • 0-10V dimming support enables smooth light-level control for energy code and comfort strategies.
  • Controls-ready architecture supports advanced sensor integration for occupancy and daylight response.
  • ETL Listed for U.S. and Canadian safety standards and suitable for damp locations.
  • Backed by a 5-year standard warranty, with optional 10-year coverage available.

Specifications

  • Lumen Output: 4000 lm (max selectable package)
  • Wattage: 28W (max selectable package)
  • Voltage: 120-277V
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K selectable
  • Dimming: 0-10V (10%-100%)
  • Power Factor: >0.90
  • Rated Life (L70): >100,000 hours
  • Ambient Operating Range: -4°F to 104°F
  • Troffer Compatibility: Fits most existing troffers with minimum 3 1/8" housing depth
  • Construction: Post-painted steel one-piece housing with universal mounting brackets

Common Uses

Ideal for education facilities, offices, healthcare spaces, retail environments, and storage areas where efficient, low-glare volumetric illumination and straightforward troffer retrofit installation are required.

RESOURCES AND DOWNLOADS

ILP VTK Volumetric Troffer Kit Spec Sheet
