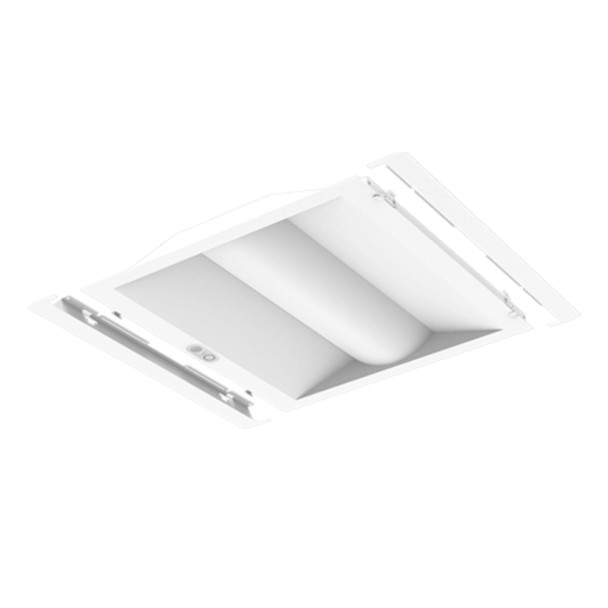

Industrial Lighting Products VTK Volumetric Troffer Kit, 2x2, 2500lm Selectable, 120-277V, CCT Selectable 2700K-5000K, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VTK Volumetric Troffer Kit, 2x2, 2500lm Selectable, 120-277V, CCT Selectable 2700K-5000K, Gen 2, Controls Ready

$70.80
  • SKU: ILP-VTK22-25L-U-CCTS-G2-CR
  • MPN: VTK22-25L-U-CCTS-G2-CR

Quick Overview

2x2 volumetric troffer retrofit kit with selectable 2500/3000/4000lm output, 2700K-5000K CCT tuning, 120-277V input, and 0-10V dimming. Controls-ready design for commercial interior upgrades in offices, education, retail, and healthcare.

ETL Listed
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VTK Gen 2 Volumetric Troffer Kit modernizes existing fluorescent troffers with a high-efficacy LED platform and field-selectable performance. Designed for commercial interiors, this 2x2 controls-ready configuration delivers flexible lumen and CCT tuning to match changing space needs. It is a core retrofit solution in ILP’s troffer upgrade lineup for energy savings, visual comfort, and simplified installation.

Key Features and Benefits

  • Field-selectable light output and CCT allow one SKU to cover multiple application requirements.
  • High efficacy performance helps reduce operating costs versus legacy fluorescent systems.
  • Controls-ready architecture supports advanced sensor-based energy management strategies.
  • 0-10V dimming capability enables smooth light level adjustment for occupant comfort.
  • ETL Listed for U.S. and Canadian safety standards with damp-location suitability.
  • Backed by a 5-year standard warranty for dependable long-term operation.

Specifications

  • Lumen Output: 2550|2607|2659|2675|2636
  • Wattage: 17W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • Efficacy: 147|152|157
  • Power Factor: 0.90
  • Dimming: 0-10V (10%-100%)
  • Rated Life (L70): 100000
  • Ambient Operating Range: -4°F to 104°F
  • Housing Depth Compatibility: 3 1/8" minimum troffer depth
  • Construction: Post-painted steel one-piece body with universal mounting brackets

Common Uses

Ideal for retrofit projects in education buildings, commercial offices, healthcare facilities, retail spaces, and storage environments where efficient, tunable, and controls-compatible troffer lighting is required.
