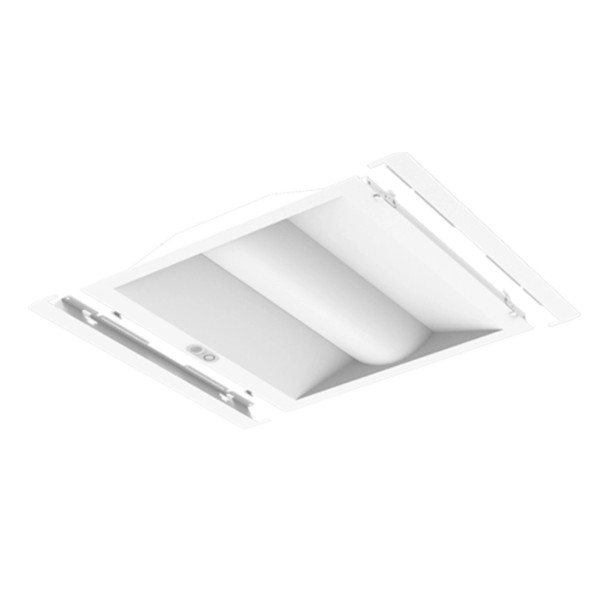

Industrial Lighting Products VTK Volumetric Troffer Kit, 2x2, 3000lm, 120-277V, CCT Selectable, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VTK Volumetric Troffer Kit, 2x2, 3000lm, 120-277V, CCT Selectable, Gen 2, Controls Ready

$70.80
  • SKU: ILP-VTK22-30L-U-CCTS-G2-CR
  • MPN: VTK22-30L-U-CCTS-G2-CR

Quick Overview

2x2 volumetric troffer retrofit kit with selectable 2700K-5000K CCT and up to 3000 lumens setting, 0-10V dimming, 120-277V input, damp-location rating, and controls-ready design for commercial interior upgrades.

ETL Listed
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VTK Gen 2 Volumetric Troffer Kit is a retrofit solution designed to modernize existing 2x2 troffers with efficient, selectable LED performance. Built for commercial interiors, it combines field-adjustable light output and CCT with a controls-ready platform for flexible project deployment.

Key Features and Benefits

  • Field-selectable lumen package and 5-CCT tuning simplify stocking and on-site configuration.
  • High-efficacy LED system helps reduce energy and maintenance costs versus legacy fluorescent systems.
  • Controls-ready architecture supports advanced sensor integration for smarter energy management.
  • 0-10V dimming capability enables smooth light level adjustment for occupant comfort and code-driven control strategies.
  • ETL Listed for U.S. and Canadian safety standards, with damp-location suitability and Title 24 compliance when paired with sensor options.
  • Backed by a 5-year standard warranty, with optional 10-year coverage available.

Specifications

  • Lumen Output: 3036|3104|3166|3185|3138
  • Wattage: 21W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • Frequency (Hz): 50/60
  • Power Factor: 0.90
  • Dimming Type: 0-10V
  • Rated Life (70 Hours): 100000
  • Efficacy (lm/W): 145|150|155|154|150
  • Max Ambient Temperature: 104°F
  • Primary Material: Steel
  • Form Factor: 2x2
  • Damp Rated: true

Common Uses

Ideal for education facilities, commercial offices, healthcare spaces, storage areas, and retail environments where existing troffers are being upgraded to efficient, controllable LED lighting.
