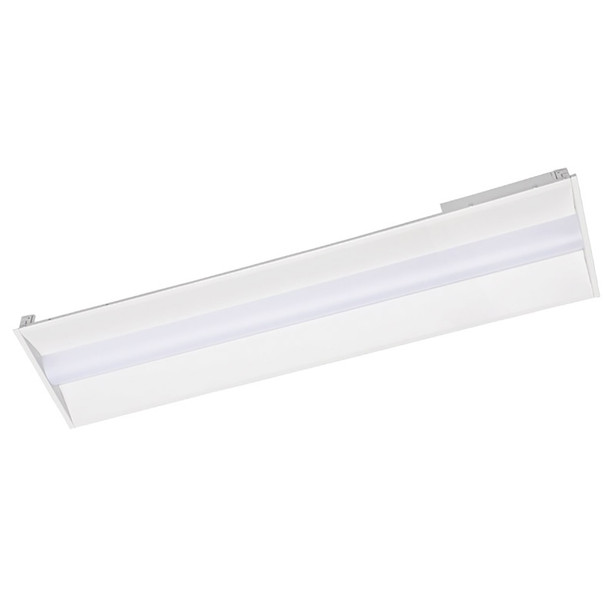

LEDone 1x4 LED Multi Watt Multi CCT Troffer, 15W/19W/24W/29W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base, 0-10V Dimming, Matte White Finish

By LEDone Distribution

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LEDone 1x4 LED Multi Watt Multi CCT Troffer, 15W/19W/24W/29W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base, 0-10V Dimming, Matte White Finish

$68.45
  • SKU: LOD-LOC-14TROF-MW(15/19/24/29) MCCT(35/40/50)
  • MPN: LOC-14TROF-MW(15/19/24/29) MCCT(35/40/50)

Quick Overview

1x4 selectable-wattage LED troffer with selectable 3500K/4000K/5000K CCT, 120-277V input, built-in sensor base, and 0-10V dimming for offices, schools, warehouses, and commercial retrofit projects.

UL Listed
WARRANTY 5 YEARS
IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The LEDone LOC-14TROF series is a versatile 1x4 LED troffer designed for modern commercial interiors requiring flexible output and color tuning. As part of LEDone’s Multi Watt Multi CCT Troffer Family, it combines field-selectable performance, long life, and clean glare-controlled illumination for retrofit and new construction applications.

Key Features and Benefits

  • Field-selectable power settings let you match light levels while helping reduce energy use.
  • Selectable 3500K/4000K/5000K CCT supports varied visual tasks and space aesthetics.
  • Built-in sensor base streamlines control-ready installations for smarter lighting layouts.
  • Durable steel and aluminum housing uses the fixture body as a heat sink for improved thermal management.
  • UL Listed and DLC Premium listed for trusted compliance and utility rebate potential.
  • Backed by a 5-year limited warranty for dependable long-term operation.

Specifications

  • Lumen Output: 1950/2470/3120/3770
  • Wattage: 15W/19W/24W/29W
  • Input Voltage: 120-277V
  • CRI: 82
  • Efficacy: 130 lm/W
  • Beam Angle: 110°
  • Power Factor: 0.9
  • THD: 20%
  • IP Rating: IP20
  • Rated Life: 100000 hours
  • Operating Temperature: -20°C to 60°C
  • Dimensions: 47.76" x 11.93" x 1.55"

Common Uses

Ideal for offices, schools, factories, supermarkets, logistics centers, warehouses, and exhibition halls where efficient, tunable, low-glare general lighting is required.
