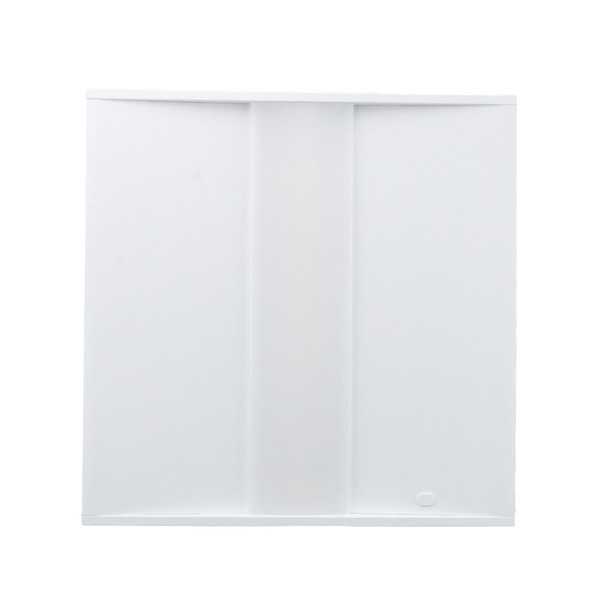

LEDone LED Multi Watt Multi CCT Troffer, 2x2, 15W/19W/24W/29W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base

By LEDone Distribution

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LEDone LED Multi Watt Multi CCT Troffer, 2x2, 15W/19W/24W/29W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base

$60.65
  • SKU: LOD-LOC-22TROF-MW(15/19/24/29) MCCT(35/40/50)
  • MPN: LOC-22TROF-MW(15/19/24/29) MCCT(35/40/50)

Quick Overview

Selectable 2x2 LED troffer with built-in sensor base, 15W/19W/24W/29W and 3500K/4000K/5000K options, delivering up to 3,770 lumens at 130 lm/W for schools, offices, warehouses, and retail spaces.

UL Listed
WARRANTY 5 YEARS
IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The LEDone Multi Watt Multi CCT Troffer in the LOC series is a versatile 2x2 commercial fixture designed for modern retrofit and new construction projects. With field-selectable wattage and color temperature, it helps contractors and facility teams standardize inventory while tailoring light output to each space.

Key Features and Benefits

  • Field-adjustable power settings (15W/19W/24W/29W) simplify project flexibility and future reconfiguration.
  • Selectable 3500K, 4000K, and 5000K CCT supports task, neutral, or daylight-style lighting preferences.
  • Built-in motion sensor base enhances energy-saving control capability in occupied spaces.
  • Glare-reduced optical design with 110° beam angle improves visual comfort in work environments.
  • 0-10V dimming compatibility enables smooth light level control with common LED dimming systems.
  • DLC Premium listed and backed by a 5-year limited warranty for confidence in commercial applications.

Specifications

  • Lumen Output: 1950/2470/3120/3770
  • Input Voltage: 120-277V
  • CRI: 82
  • Efficacy: 130 lm/W
  • Power Factor: 0.9
  • THD: 20%
  • Rated Life: 100,000 hours
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • IP Rating: IP20
  • Fixture Dimensions: 23.74" x 23.74" x 1.57"
  • Net Weight: 7.4 lbs

Common Uses

Ideal for warehouses, schools, factories, offices, supermarkets, logistics centers, and exhibition halls. It is suitable for recessed installations and can also be used with optional surface-mount kits where grid access is limited.
