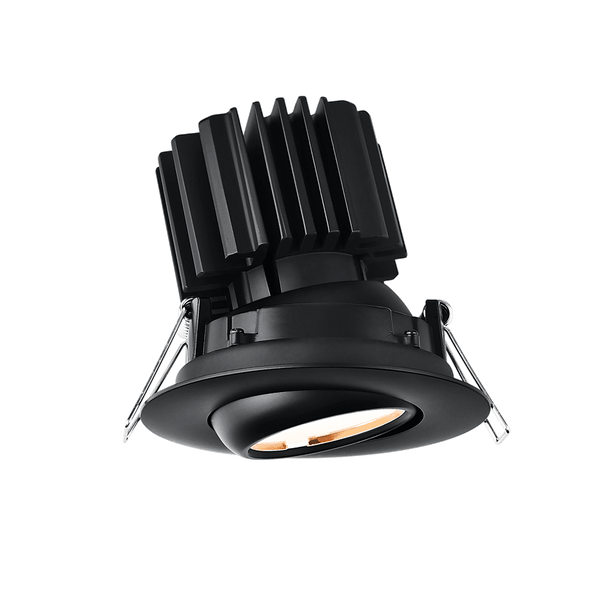

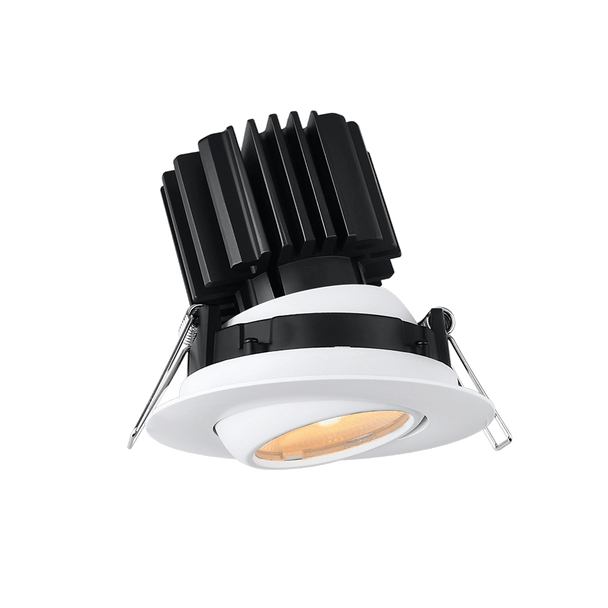

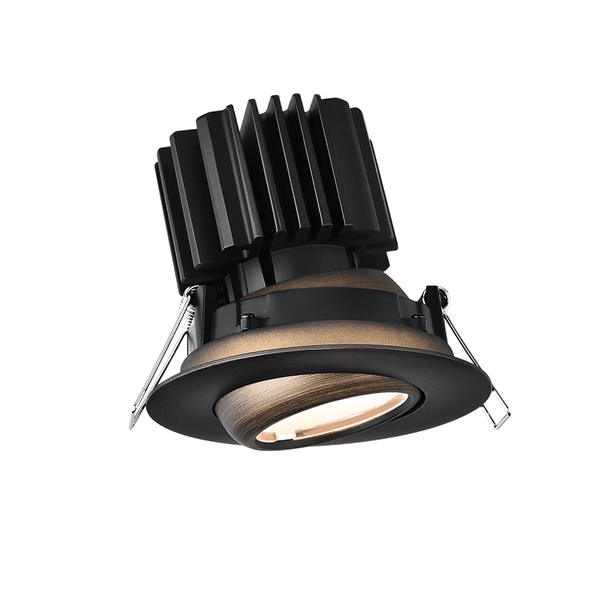

Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED

By Lotus LED Lights
Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED
Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED
Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED
Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED
Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED
Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights Tangra 3" Gimbal Round Flat Wide Trim, 5CCT CRI98 LED

$121.25
  • SKU: LLL-L3G-RFW-5C98
  • MPN: L3G-RFW-5C98

Quick Overview

3" adjustable recessed gimbal with flat wide trim, up to 1600 lm, 11W/15W selectable power, 5CCT tuning (2700K-5000K), CRI98, and wet-location IP54 rating for task, sloped ceiling, and wall wash applications.

ETL Listed
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-RFW series is a premium 3" gimbal recessed fixture engineered for high-end architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible aiming and excellent color quality for demanding residential and commercial spaces. Its modular platform supports multiple driver and optic combinations for tailored performance.

Key Features and Benefits

  • Precision gimbal design with 20° tilt and 360° rotation for accurate accent, task, and wall-wash lighting
  • High-quality light output up to 1600 lumens with ultra-high CRI options for enhanced color rendering
  • Selectable 11W/15W operation with compatible Triac or 0-10V dimmable driver options
  • Rugged cast aluminum construction with refined trim and optic finishes for long-term durability
  • Certified cETLus and FCC compliant, Type IC, Air Tight, Open Plenum, and Wet Location IP54 rated
  • Long-term manufacturer-backed coverage: supported for product life plus 5 years

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W/15W selectable
  • Voltage: 120V (Triac driver) or 120-347V (0-10V driver)
  • Color Temperature: 5CCT 2700K/3000K/3500K/4000K/5000K
  • CRI: 98
  • Beam Angle: 20°/24°/36°/50°/60°
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
  • Rated Life: 50,000 hours at 70% lumen maintenance
  • IP Rating: IP54

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in upscale homes, hospitality spaces, retail environments, and other interior areas requiring compact, directional recessed illumination.
