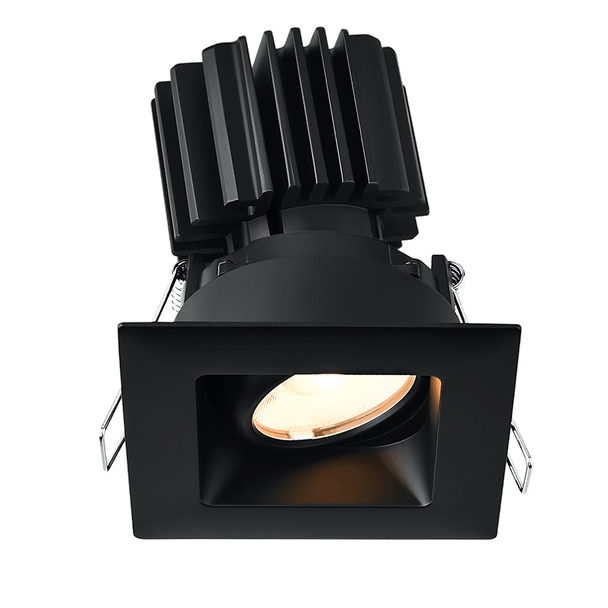

Tangra 3" Gimbal Square Recessed Wide Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 3" Gimbal Square Recessed Wide Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98

$136.60
  • SKU: LLL-L3G-SRW-5C98
  • MPN: L3G-SRW-5C98

Quick Overview

3" gimbal square recessed wide trim downlight with selectable 11W/15W power, up to 1600 lumens, 5CCT tuning, CRI98, and wet-location IP54 rating for task lighting, wall washing, and sloped ceilings.

IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-SRW is a premium 3" gimbal square recessed wide trim fixture engineered for high-end architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers flexible aiming, high color quality, and dependable performance across residential and commercial projects.

Key Features and Benefits

  • Selectable 11W or 15W operation to balance energy savings and light output needs
  • Up to 1600 lumens with ultra-high CRI options for accurate, vibrant color rendering
  • 20° tilt and 360° rotation for precise accenting, wall washing, and directional task lighting
  • Multiple beam options and optical configurations for tailored visual comfort and distribution
  • Certified cETLus and FCC compliant with Type IC, Airtight, Open Plenum, and Wet Location IP54 suitability
  • Long-term coverage backed by Lotus line-lifetime support plus 5-year warranty commitment

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V (Triac driver option) | 120-347V (0-10V driver option)
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K (5CCT option)
  • CRI: 98
  • Beam Angle: 20°|24°|36°|50°|60°
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Max Ambient Temperature: 113°F (45°C)
  • Rated Life (70 Hours): 50000
  • Cutout: 3 1/4"
  • Driver Clearance Above Ceiling: 4"

Common Uses

Ideal for upscale residential and commercial interiors including task lighting zones, sloped ceilings up to 20°, and wall-washing applications where precise aiming and high color fidelity are essential.
