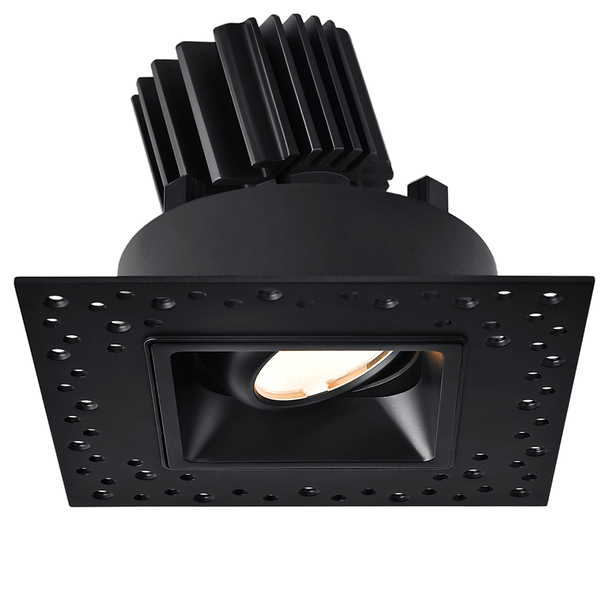

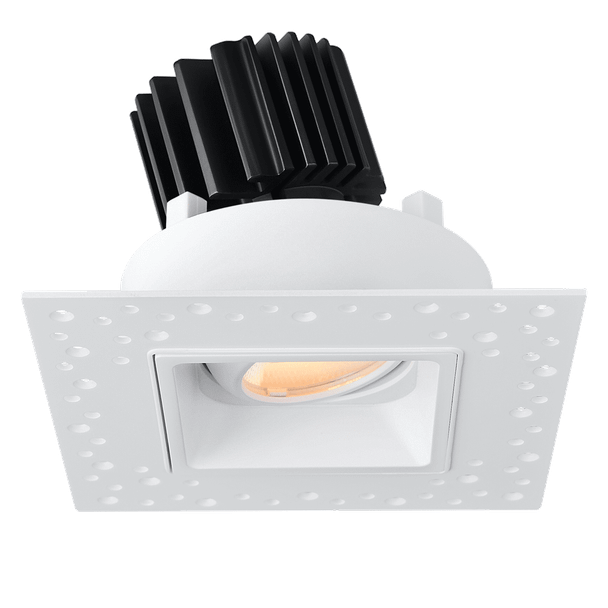

Lotus Tangra 3" Gimbal Square Invisible Trim, 4CCT+DTW 3500K-2700K, CRI90 LED

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus Tangra 3" Gimbal Square Invisible Trim, 4CCT+DTW 3500K-2700K, CRI90 LED

$151.95
  • SKU: LLL-L3G-SIT-4C90
  • MPN: L3G-SIT-4C90

Quick Overview

3" trimless gimbal recessed fixture with black trim, 4CCT+DTW (3500K-2700K), CRI90, 11W/15W selectable power, up to 1600 lm, and 20° tilt with 360° rotation for task, sloped ceiling, and wall wash applications.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus Tangra L3G-SIT is a premium 3" gimbal square invisible trim recessed fixture designed for high-end architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible aiming and tunable light performance for demanding residential and commercial spaces. As part of Lotus’ modular Tangra lineup, it supports multiple driver and optical configurations for tailored project needs.

Key Features and Benefits

  • Trimless 3" gimbal design with 20° tilt and full 360° rotation for precise accent and task lighting.
  • 4CCT + Dim-to-Warm light engine transitions from 3500K to 2700K with high 90 CRI color quality.
  • Selectable 11W/15W operation with output up to 1600 lumens for adaptable performance.
  • Supports Triac or 0-10V dimming (driver-dependent) for broad control compatibility.
  • Certified cETLus and FCC, with Type IC, Airtight, Open Plenum, and Wet Location IP54 ratings.
  • Long-term coverage with Lotus lifetime line support plus 5-year warranty.

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W/15W selectable
  • Voltage: 120V or 120-347V (by driver)
  • Color Temperature: 3500K-2700K (4CCT+DTW option)
  • CRI: 90
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Beam Angle: 20°|24°|36°|50°|60°
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
  • Rated Life: 70% lumen maintenance at 50,000 hours
  • Ingress Protection: IP54

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in upscale homes, hospitality spaces, retail environments, and other architectural interiors requiring discreet trimless recessed lighting.
